4G63T Evo 1-3/VR4/Eclipse 1G-2G

All Mamba turbo chargers are balanced by award winning SCHENCK balancing machinery.

• 4G63T Evo 1-3/VR4/Eclipse 1G-2G

        9-11 GTX TD05H-16G

• Supports 360-430HP
• Comp. Wheel: 48.39 mm / 68mm (GTX 11 Blade Billet Wheel 16G with  Extended Tip)

• Turbine Wheel: 49.2 / 56 mm (9 Blade TD05H Performance High Inconel  Turbine Wheel)
• Turbine Housing: 7cm^2

        9-11 GTX TD05H-18G

• Supports 380-450HP
• Comp. Wheel: 50.39 mm / 68mm (GTX 11 Blade Billet Wheel 18G with  Extended Tip)
  Turbine Wheel: 49.2 / 56 mm (9 Blade TD05H Performance High Inconel  Turbine Wheel)
• Turbine Housing: 7cm^2

        9-11 GTX TD05H-20G

• Supports 380-450HP
• Comp. Wheel: 52.5 mm / 68mm (GTX 11 Blade Billet Wheel 20G with  Extended Tip)

• Turbine Wheel: 49.2 / 56 mm (9 Blade TD05H Performance High Inconel  Turbine Wheel)
• Turbine Housing: 7cm^2

        9-11 GTX TD06SL2-20G

• Supports 400-480HP
• Comp. Wheel: 52.5 mm / 68mm (GTX 11 Blade Billet Wheel 20G with  Extended Tip)

• Turbine Wheel: 54.1 / 61 mm (9 Blade TD06SL2 Performance High Inconel  Turbine Wheel)
• Turbine Housing: 7cm^2

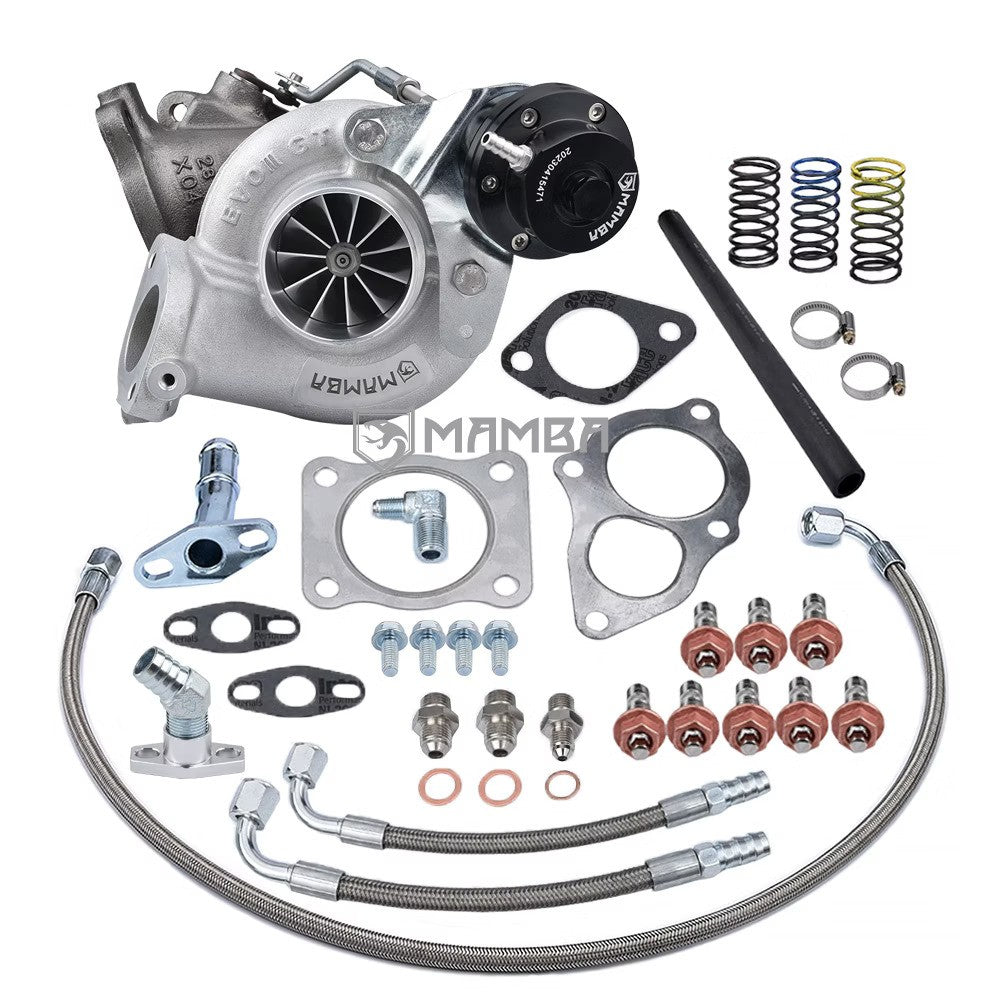

        All Turbos Include:

• Performance Journal Bearing
• Oil & water-cooled
• Fitting Kit

• 0.8bar spring pre-installed.
• Additional 1.2bar and 1.5bar springs included
