4JH1

All Mamba turbo chargers are balanced by award winning SCHENCK balancing machinery.

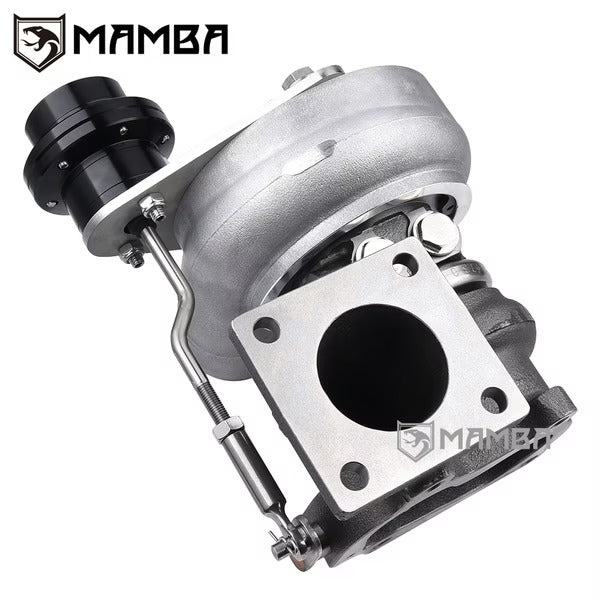

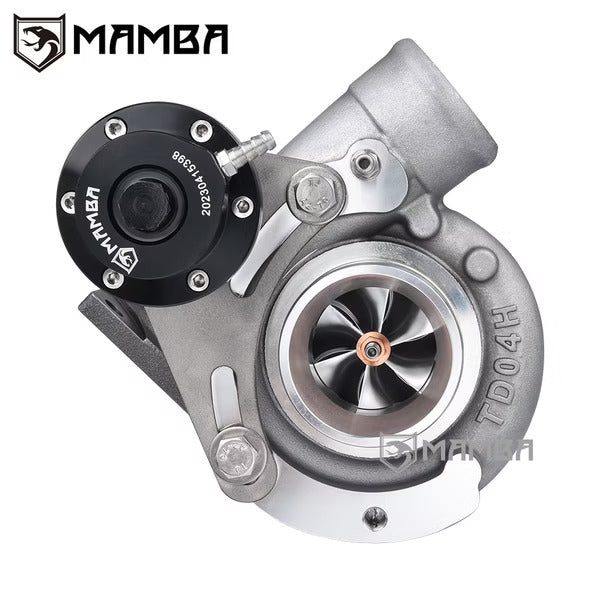

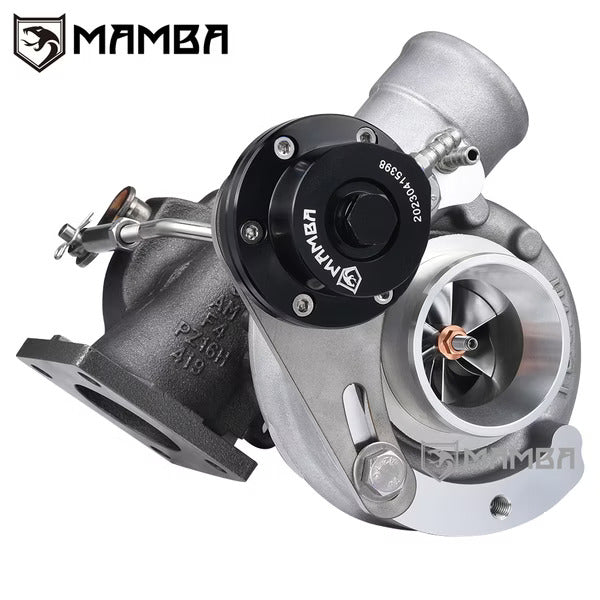

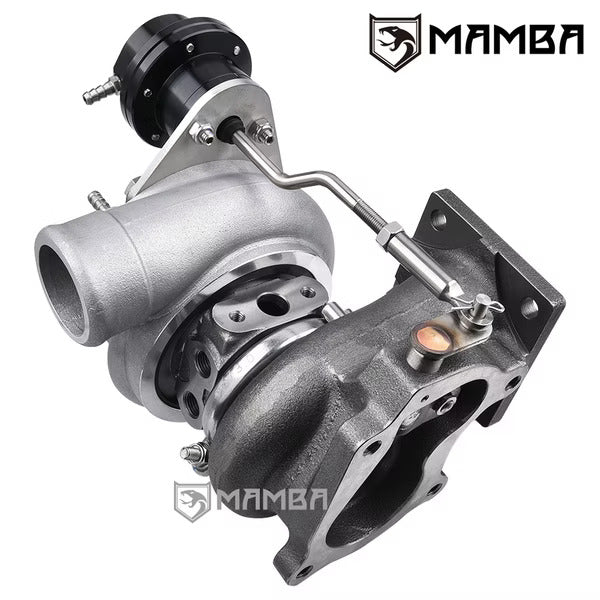

          9-6 TD04L-15T

• ISUZU 4JG2T 3.1L Diesel engine
  ISUZU 4JH1-TC 3.0L Diesel with IHI RHF5 VIEK / VA430093, 8973544234 Turbo on D-MAX, Holden Rodeo, Rodeo Pickup.
  This turbo could fit many ISUZU / MAZDA engines if you rotate the housing

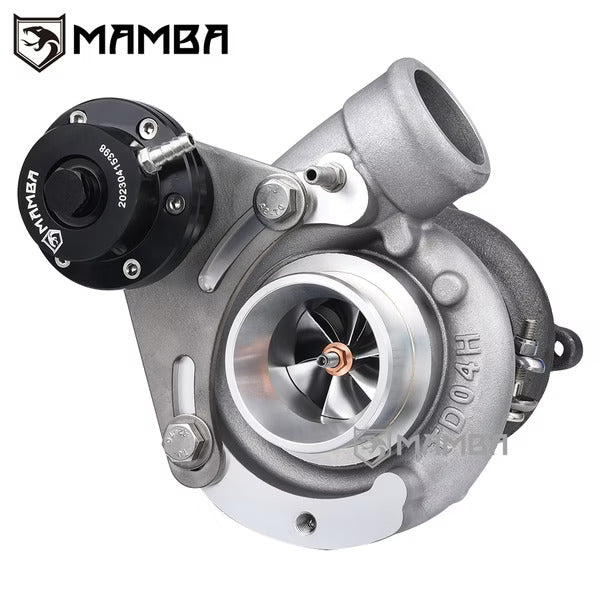

• Comp. Wheel: 42.0 / 56.0 mm (6+6 15T Billet Wheel w/ Extend Tip)

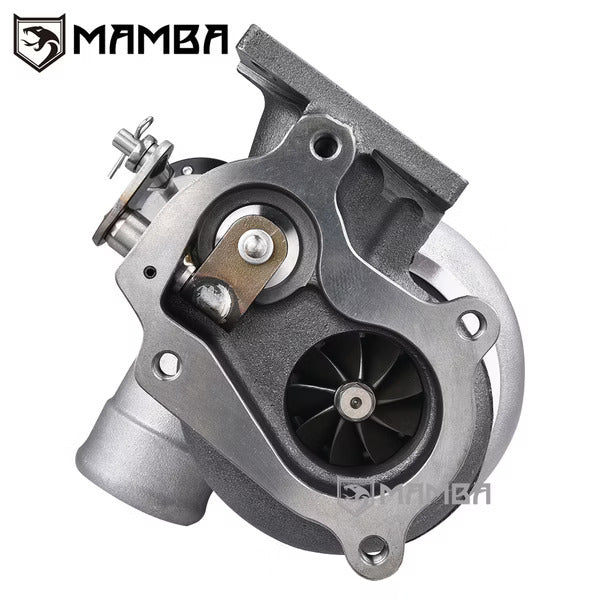

• Turbine Wheel: 41.2 / 46.8 mm (9 Blade TD04L)
• Compressor Housing Inlet OD: 2.35" / 60mm
• Compressor Housing Outlet OD: 2” / 50 mm
• Turbine Housing: 6cm (A/R .41)

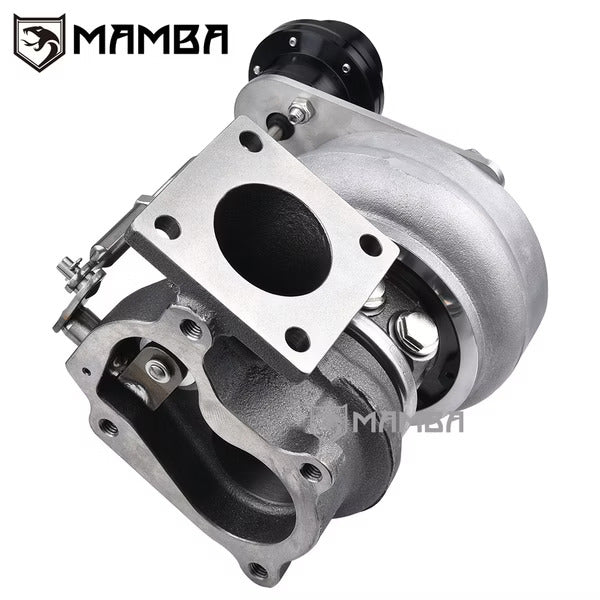

• Turbine Inlet Flange: Standard RHF4H / RHF5
• Turbine Outlet Flange: Standard 4 bolt RHF4H RHF5 RHB5
• Performance journal bearing

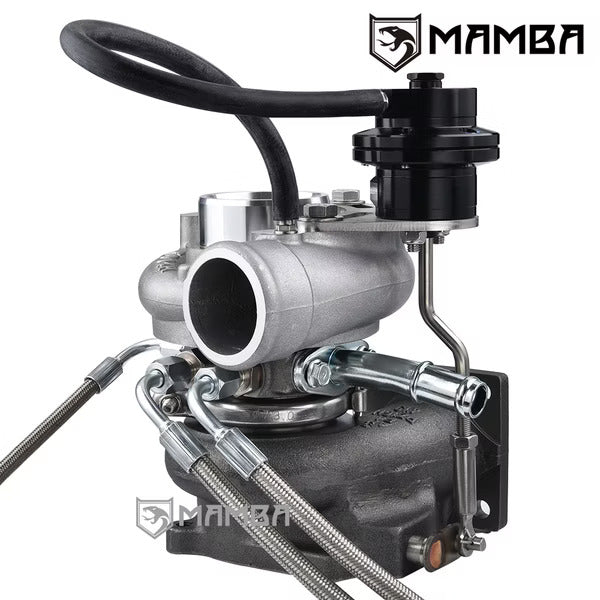

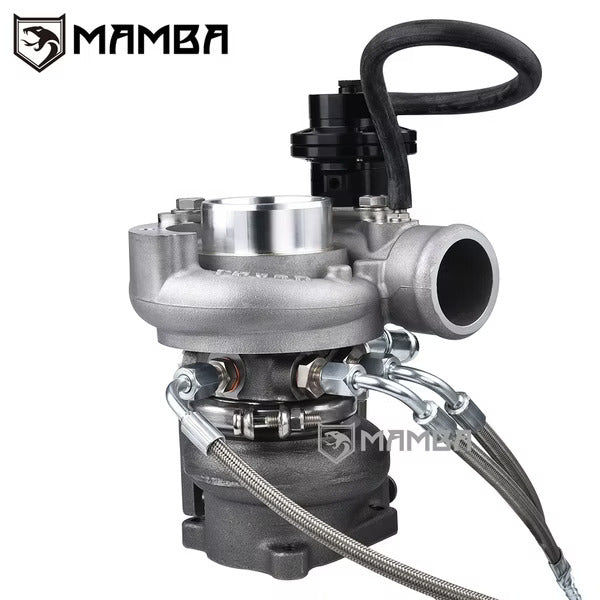

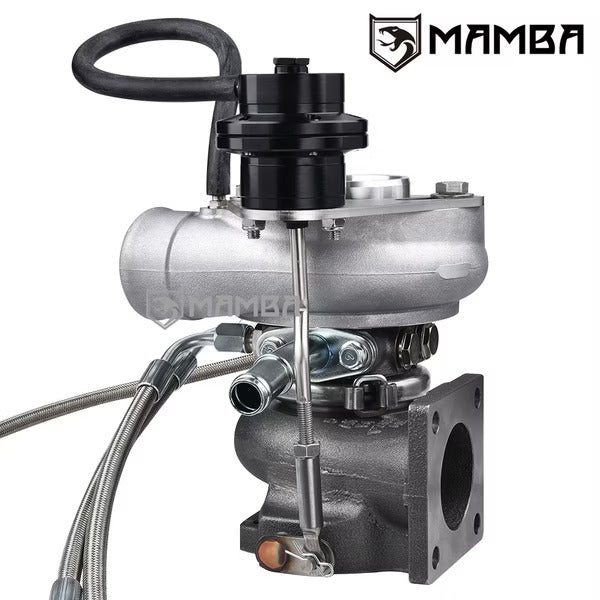

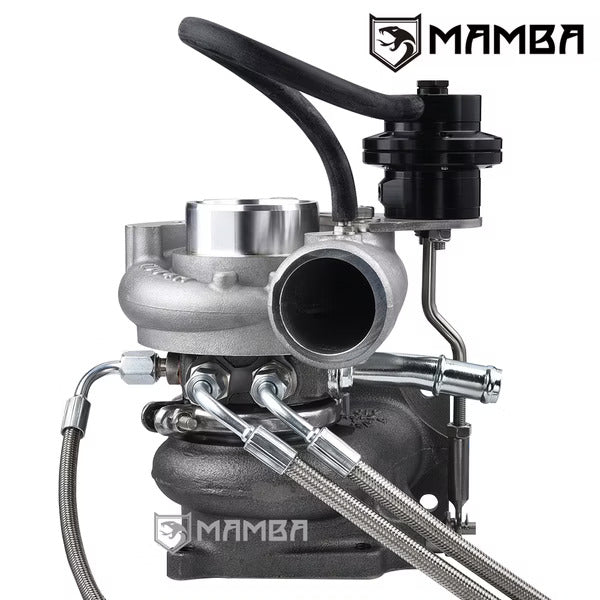

• Oil and Water-cooled system

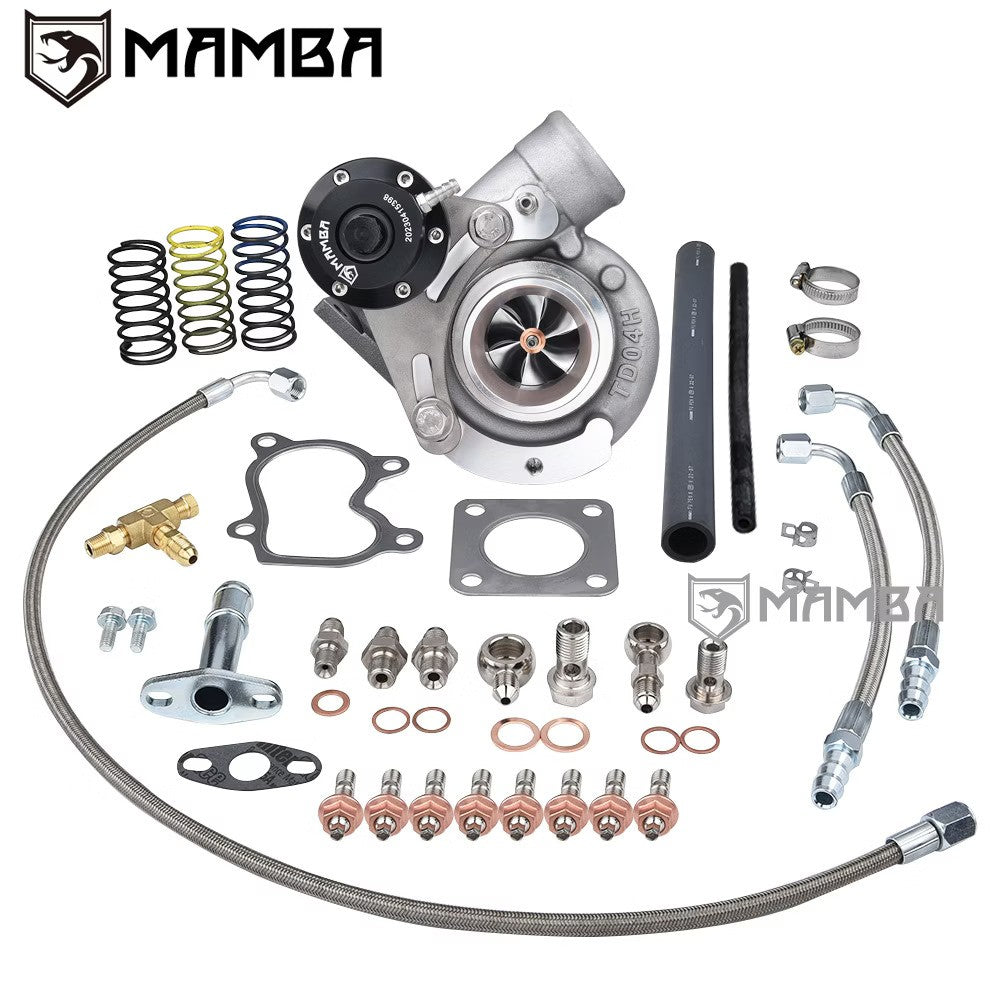

• Fitting Kit Included

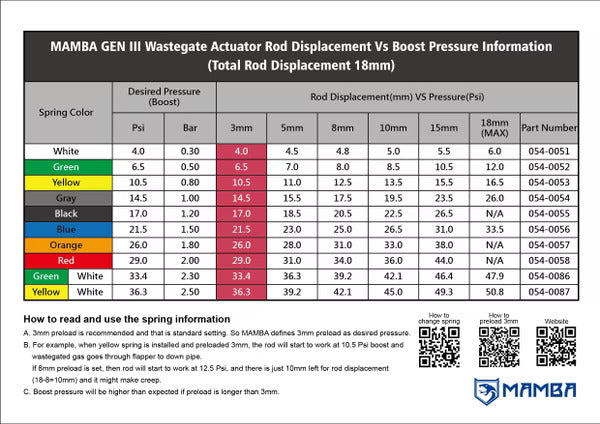

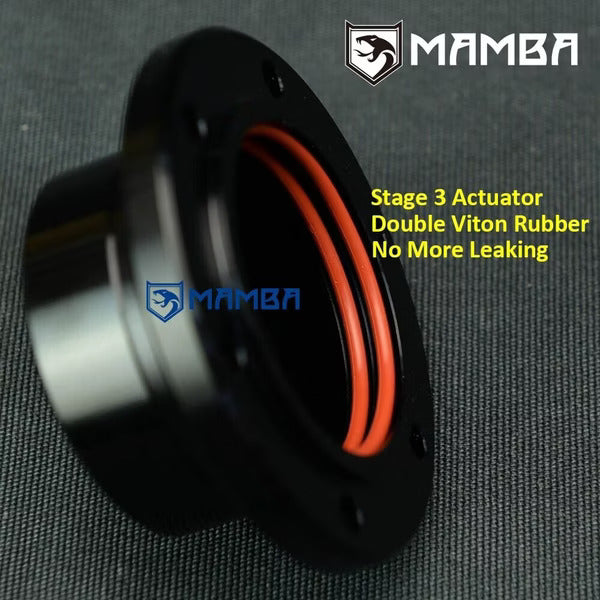

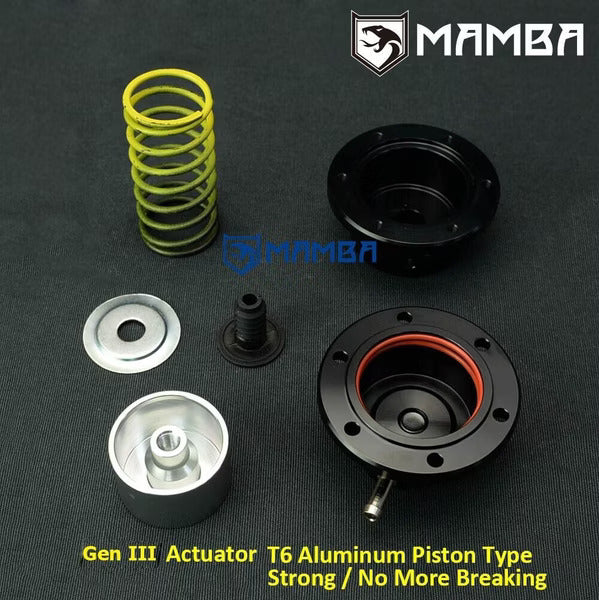

• 0.8bar spring pre-installed
• Additional 1.2bar and 1.5bar springs included
