4M40T

All Mamba turbo chargers are balanced by award winning SCHENCK balancing machinery.

• 2.8L diesel Pajero Delica with 49135-031xx, 49377-030xx
  TD04-12T oil-cooled turbo 49377-03000, 49377-03010, 49377-03020, 49377-03030, 49377-03031, 49377-03033, 49377-03040, 49377-03041, 49377-03043, 49377-03050, 49377-03051, 49377-03053
  TF035HM-12T oil & water-cooled turbo : 49135-03100, 49135-03101, 49135-03110, 49135-03111, 49135-03112, 49135-03120, 49135-03130

        9-11 TD04-12T

• Comp. Wheel: 37.8 mm / 49mm (12T GTX 11+0 wheel with Extended Tip 53.01)

• Turbine Wheel: Inducer 47.2mm / Exducer 40mm (TD04 9 blade)
• Turbine Housing: 5cm

        9-11 TD04-13T

• Compressor Wheel: 40.61 mm / 56mm (Subaru WRX TD04L-13T GTX 11+0 wheel with Extended Tip 60.13)

• Turbine Wheel: Inducer 47.2mm / Exducer 40mm (TD04 9 Blade)
• Turbine Housing: 5cm

        9-11 TD04-15T

• Compressor Wheel: 41.93 mm / 55.69mm (Saab 9-3/9-5 Aero TD04HL-15T wheel with Extended Tip 59.97)

• Turbine Wheel: Inducer 47.2mm / Exducer 40mm (TD04 9 Blade)
• Turbine Housing: 5cm

        9-6 TD04L-19T

• Turbo inlet is 60mm larger than the factory 4M40T
• Compressor Wheel: 46/58 mm (Performance 6+6 Blade 19T Billet Wheel)

• Turbine Wheel: 41.2/47.2 mm (Performance 9 Blade TD04L)
• Compressor Inlet: 2.35”/60mm

• Compressor Outlet: 2” / 50.8mm
• A/R: 4cm

        9-11 TD04L-13T V2

• Comp. Wheel: 41.93 mm / 55.69mm (GTX 11+0 wheel with Extended Tip 59.97)

• Turbine Wheel: Inducer 46.8mm / Exducer 41.2mm (TD04L 9 blade)
• Turbine Housing: 5cm

        9-11 TD04L-15T V2

• Comp. Wheel: 41.93 mm / 55.69mm (Saab 9-3/9-5 Aero TD04HL-15T wheel with Extended Tip 59.97)

• Turbine Wheel: Inducer 46.8mm / Exducer 41.2mm (TD04L 9 High Flow Turbine wheel)
• Turbine Housing: 5cm

        9-11 TF035HM-12T

• Comp. Wheel: 37.8 mm / 49mm (GTX 11 Blade Billet Wheel 12T with  Extended Tip 53.01)

• Turbine Wheel: Inducer 43.2mm / Exducer 36.2mm (TF035HM 9 Blade)
• Turbine Housing: 5cm

        9-11 TF035HM-13T

• Comp. Wheel: 40.61 mm / 56mm (Subaru WRX TD04L-13T GTX 11+0 wheel with Extended Tip 60.13)

• Turbine Wheel: Inducer 43.2mm / Exducer 36.2mm (TF035HM 9 blade)
• Turbine Housing: 5cm

        9-11 TF035HM-15T

• Comp. Wheel: 41.93 mm / 55.69mm (TD04L-15T GTX 11+0 wheel with Extended Tip 59.97)

• Turbine Wheel: Inducer 43.2mm / Exducer 36.2mm (TF035HM 9 blade)
• Turbine Housing: 5cm

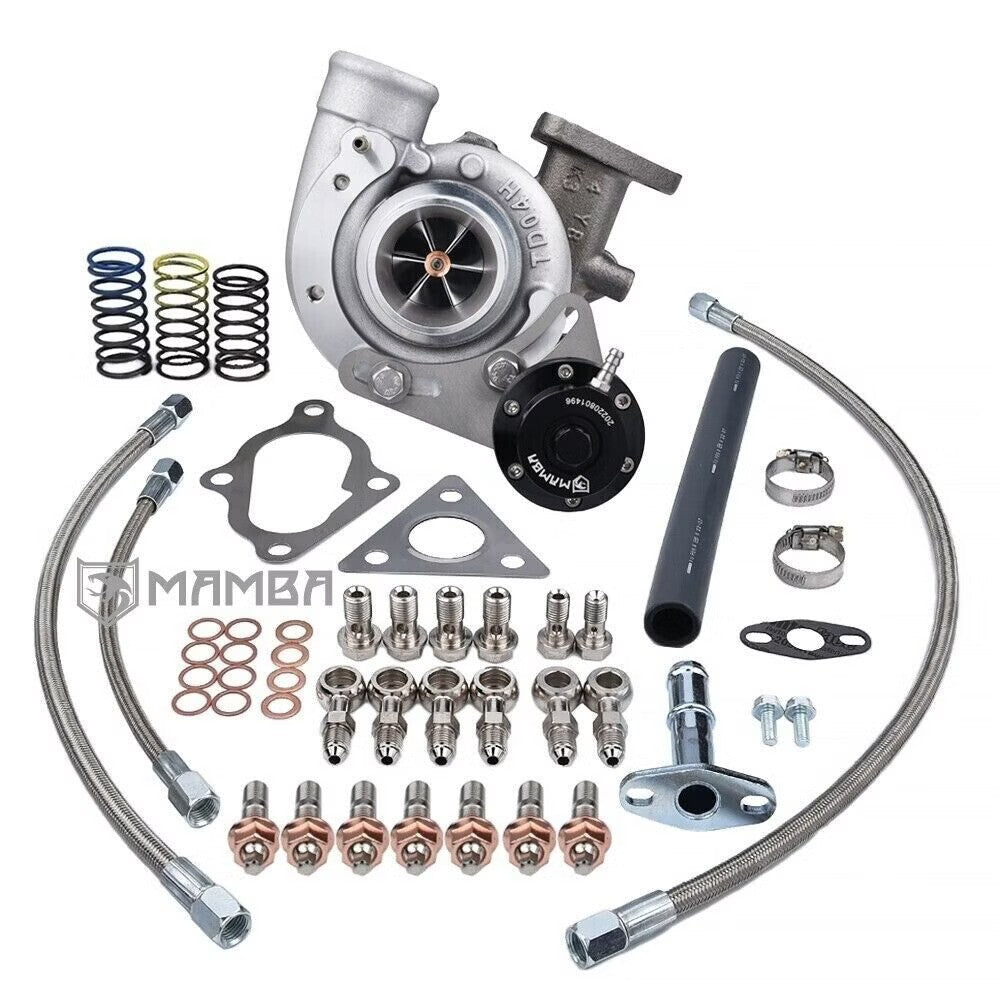

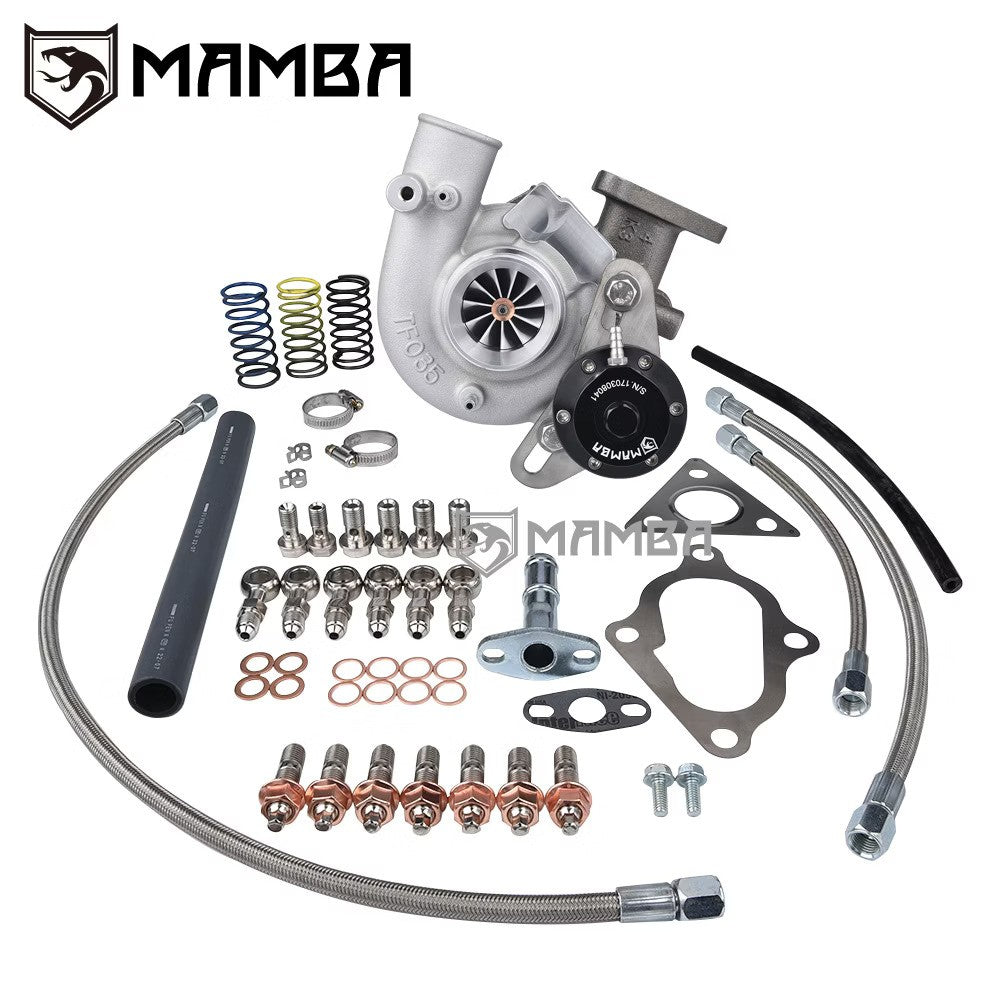

        All Turbos Include:

• Performance Journal Bearing

• Oil & water-cooled
• Fitting Kit

• 0.8bar spring pre-installed.
• Additional 1.2bar and 1.5bar springs included
