9-11 GTX TD05H-16G 8cm T3 V-Band Hsg Anti Surge

All Mamba turbo chargers are balanced by award winning SCHENCK balancing machinery

• 1.8-2.5L Gasoline Engine / 280-400HP

• 3.5-4.5L Diesel Engine

• Compressor Wheel: 48.3 mm / 68mm (GTX 11 Blade Billet Wheel 16G)

• Turbine Wheel: 49.2 / 56 mm (TD05H 9 blade Performance High Inconel Turbine Wheel)

• Compressor Housing: 3” Inlet / 2” Outlet (76.2mm Inlet / 51mm Outlet)
• 8cm / A/R .64

• Standard T3 Flange

• V Band Hsg
• External Wastegate Required
• Performance journal bearing
• Oil and Water Cooled
• 0.8bar spring pre-installed
• Additional 1.2bar and 1.5bar springs included

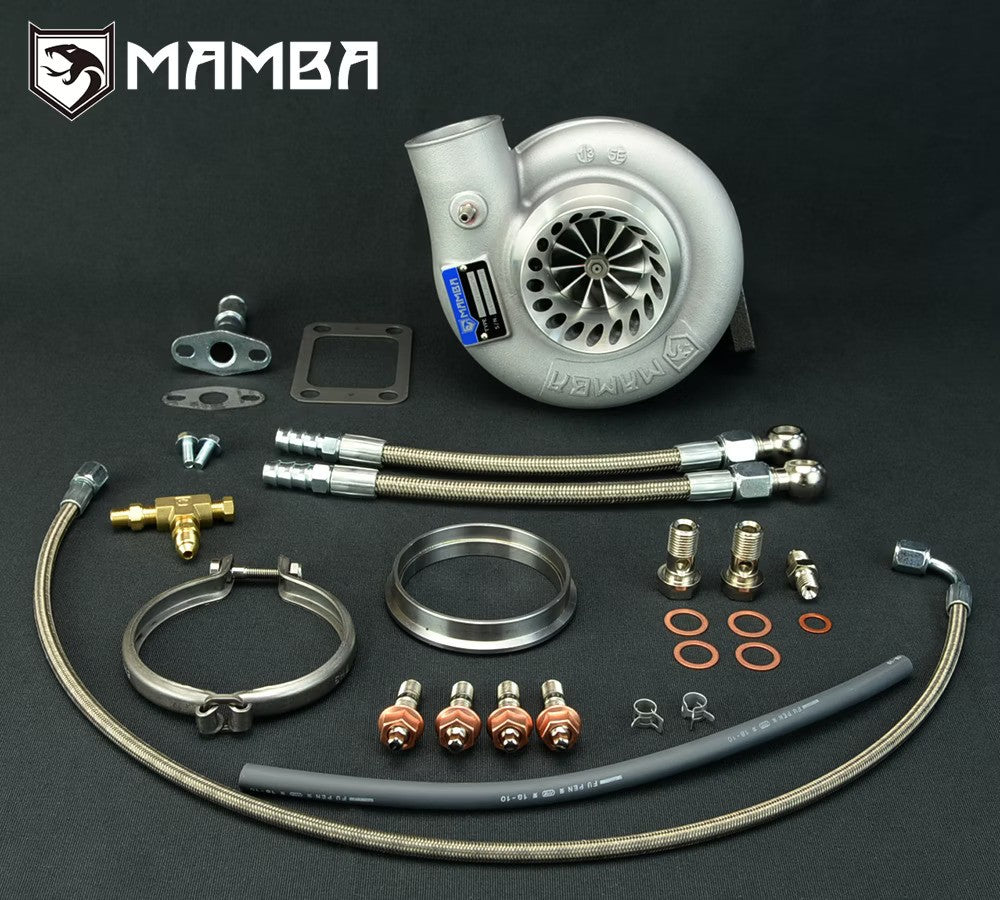

• Fitting Kit Included
