BA/BF Barra/Territory

All Mamba turbo chargers are balanced by award winning SCHENCK balancing machinery.

• 02-05 Ford Falcon XR6 4.0L BA, Territory (Including F6 Typhoon)
  06-08 Ford Falcon XR6 4.0L BF, Territory (Including F6 Typhoon)

         GTX3582R 3" A/R .50 + 1.05

• Compressor wheel: 62.5/82.5mm (7+7 Blade Performance Billet Compressor Wheel)

• Turbine Wheel: 62/68 (9 Blade high flow)
• Compressor Housing: 3” Inlet, 2” Outlet, A/R .50 T04E Type.

• Turbine Housing: A/R. 1.06, T3 Flange, 5 Bolt Turbine Outlet (Fits factory Barra Dump pipe)


        GTX3582R 4” A/R .70 + .82

• Supports 500-650HP
• Comp. Wheel: 62.5 / 82.5 mm / Trim 58 (GTX 11+0 Blade Billet Wheel w/ Extended Tip)

• Turbine Wheel: 62 mm / 68 mm / Trim 84 (GT35R)
• Compressor Housing: 4” Inlet, 2.5" Outlet, A/R .70

• Turbine Housing A/R .82, T3 Flange, 5 Bolt Turbine Outlet (Fits factory Barra Dump pipe)

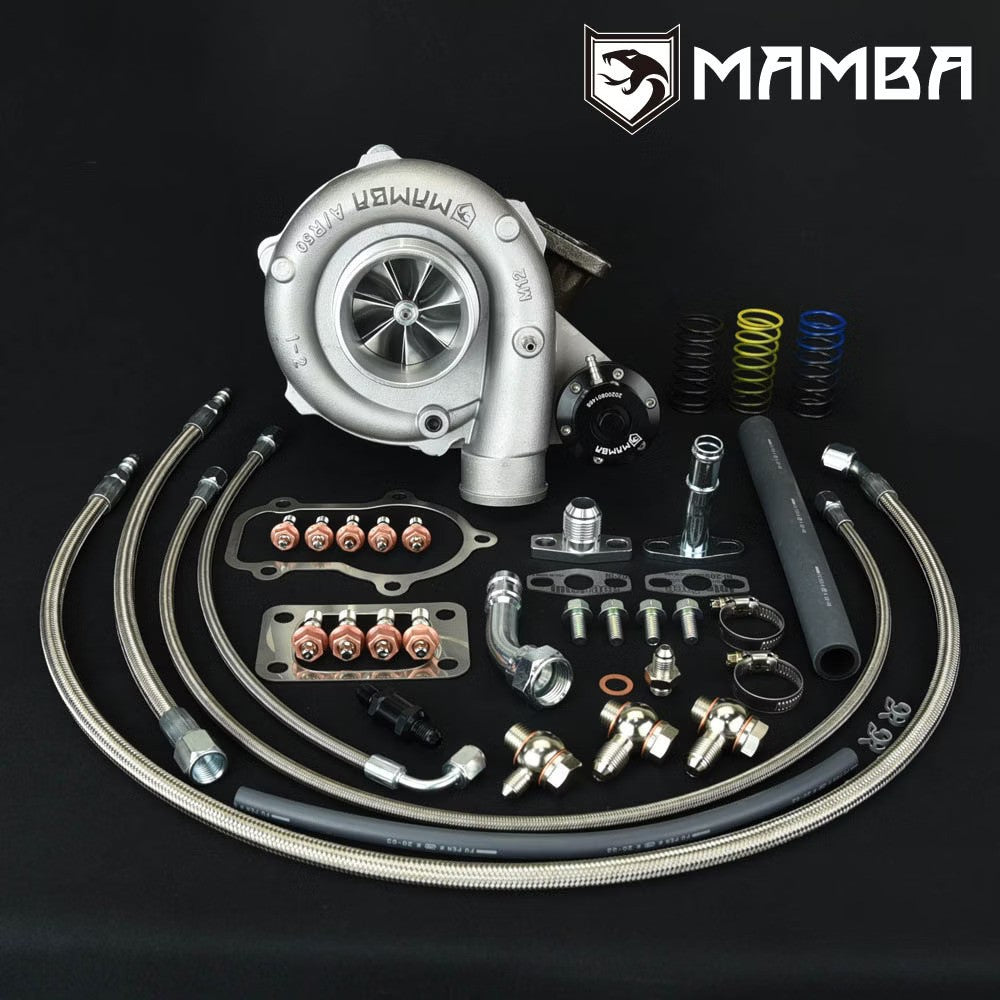

        All Turbos Include:

• Ceramic Dual Ball Bearing
• Oil & water-cooled
• Fitting Kit

• 0.8bar spring pre-installed.
• Additional 1.2bar and 1.5bar springs included
