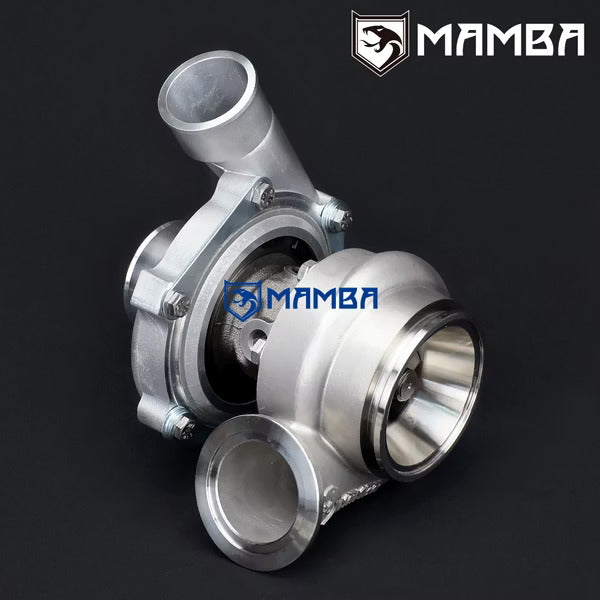

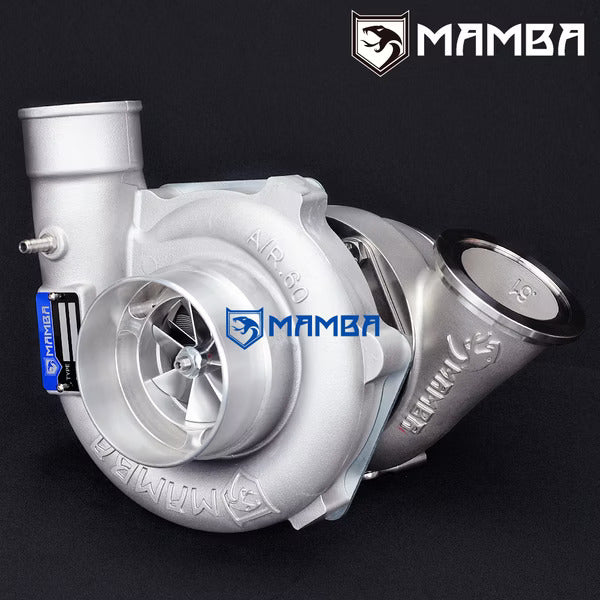

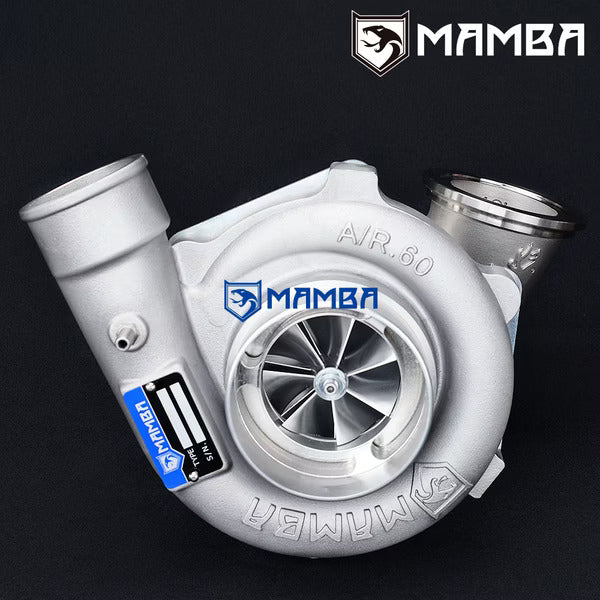

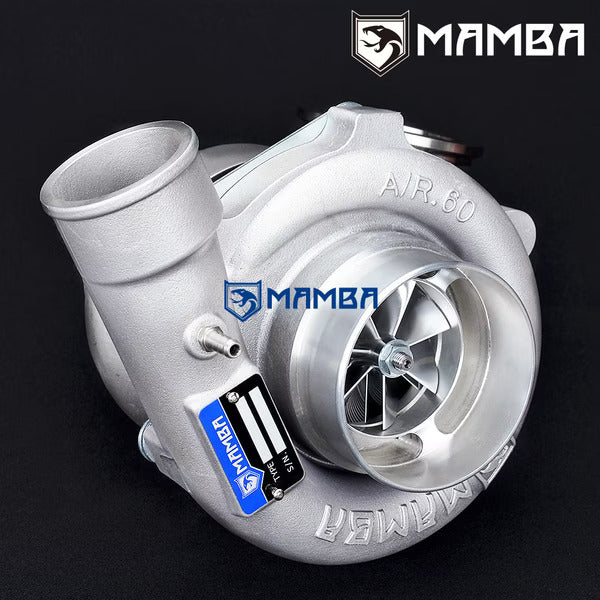

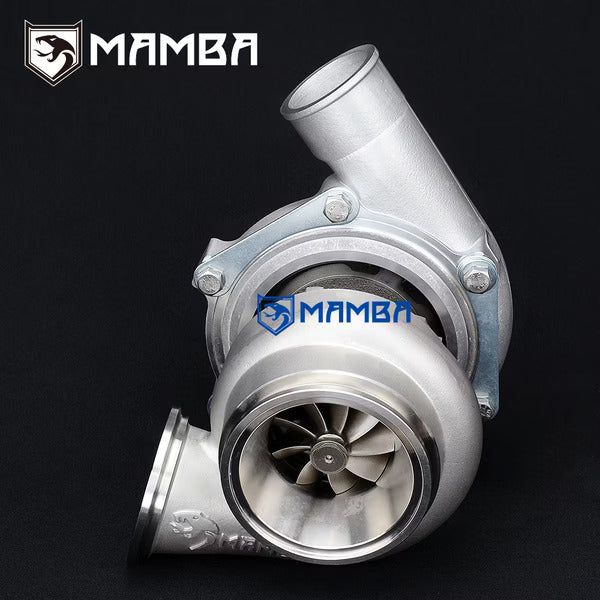

Dual V-Band GT2860RS

All Mamba turbo chargers are balanced by award winning SCHENCK balancing machinery

• Universal 7+7 3” A/R.60 GT2860RS Ball Bearing

• Rated HP: 250-480
• Compressor wheel: 47.2mm/60.1mm/62T (Performance 7+7 Blade Billet Wheel )

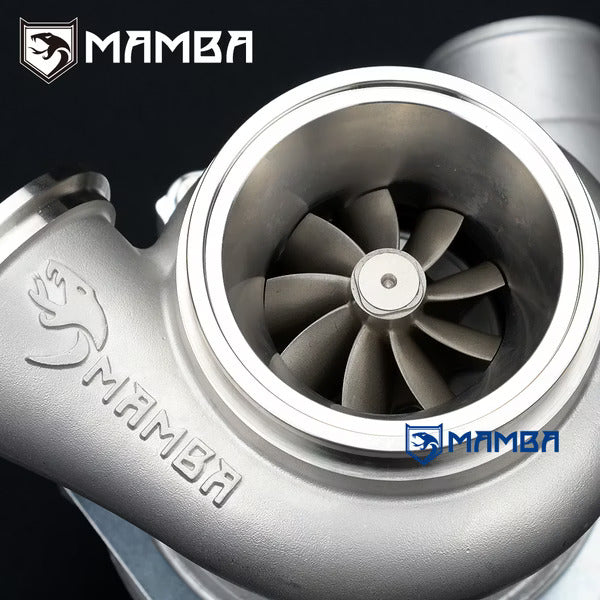

• Turbine wheel: 47.0mm/53.8mm/76T ( 9 Blade GT28R )

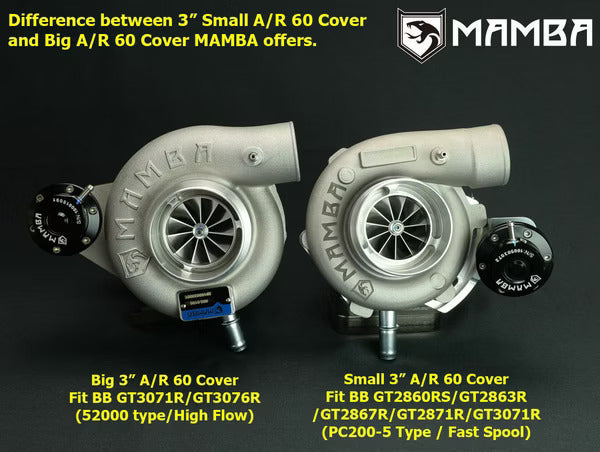

• Compressor Housing A/R: .60 ( GT28R/PC200/Twisted Anti Surge )

• Compressor Inlet: 3”/76.2mm

• Compressor Outlet: 2”/50.8mm

• Turbine Housing A/R: .61 or .73

• Turbine Inlet: 2.35” V-Band

• Turbine Outlet: 3” V-Band
• External Wastegate Design

• Oil & water-cooled

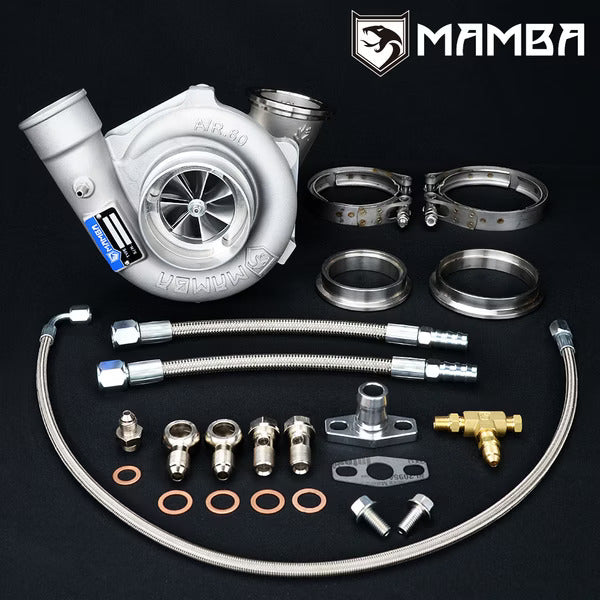

• Fitting Kit Included
• 0.8bar spring pre-installed
• Additional 1.2bar and 1.5bar springs included
