GE/GH/GR

All Mamba turbo chargers are balanced by award winning SCHENCK balancing machinery.

• 07~11 GE GH GR GV EJ20 / Ej25 engine on WRX, Forester and Legacy.
  05~09 Legacy GT / Outback XT.
  08~14 Subaru WRX
  Replace Mitsubishi TF035HM, TD04L-13T (49477-04000)
  or IHI VF40, VF46, VF52 on WRX, Legacy or Forester.

         GTX2867R .49 Hsg and GTX2867R .64 Hsg

• Supports 350-480HP
• Comp. Wheel: 49.7 mm / 67.4 mm/Trim 55　(7+7 GTX Billet Wheel w/ Extended Tip)

• Turbine Wheel: 47.0 mm / 53.8 mm / Trim 76 (High Flow GT28R Turbine Wheel)

• Compressor Housing A/R: .60

• Turbine Housing A/R: .49 or .64


        GTX2871R .49 Hsg and GTX2871R .64 Hsg

• Supports 380-500HP
• Comp. Wheel: 54.1 mm / 71 mm/ Trim 58　(7+7 Billet Wheel w/ Extended Tip)

• Turbine Wheel: 47.0 mm / 53.8 mm / Trim 76 (High Flow GT28R Turbine Wheel)

• Compressor Housing A/R: .60

• Turbine Housing A/R : .49 or .64


        GTX2971R .49 Hsg and GTX2971R .64 Hsg

• Supports 400-500HP
• Comp. Wheel: 54.1 mm / 71 mm/ Trim 58 (7+7 Billet Wheel w/ Extended Tip)

• Turbine Wheel: 52.0 mm / 56.5 mm / Trim 84 (GT29R Turbine Wheel)

• Compressor Housing A/R: .60

• Turbine Housing A/R : .49 or .64


        GTX3071R .49 Hsg and GTX3071R .64 Hsg

• Supports 430-520HP
• Comp. Wheel: 54.1 mm / 71 mm/ Trim 58 (7+7 Billet Wheel w/ Extended Tip)

• Turbine Wheel: 55.0 mm / 60 mm / Trim 84 (GT30R Turbine Wheel)

• Compressor Housing A/R: .60

• Turbine Housing A/R : .49 or .64

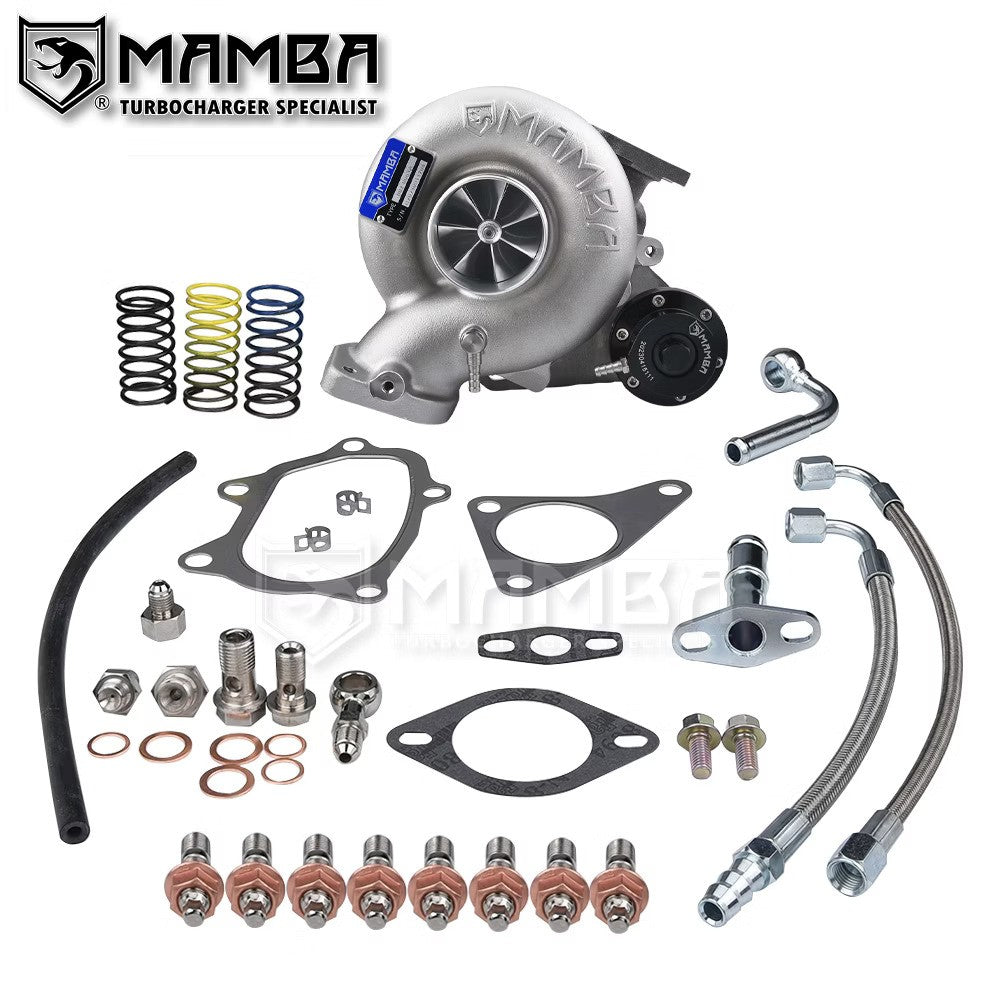

        All Turbos Include:

• NTN Ceramic Dual Ball Bearing
• Oil & water-cooled
• Fitting Kit

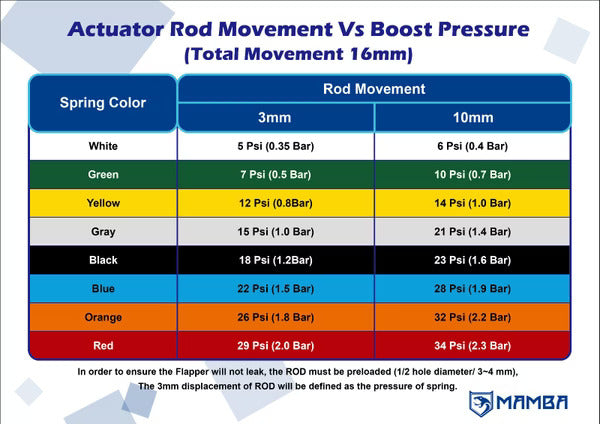

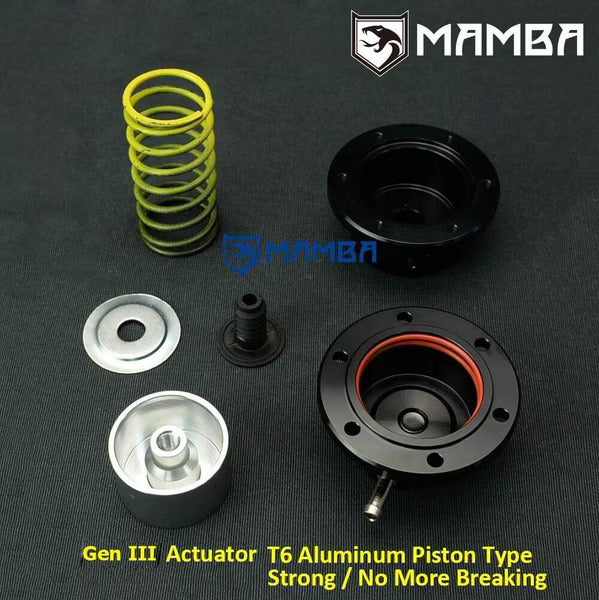

• 0.8bar spring pre-installed.
• Additional 1.2bar and 1.5bar springs included
