All Mamba turbo chargers are balanced by award winning SCHENCK balancing machinery

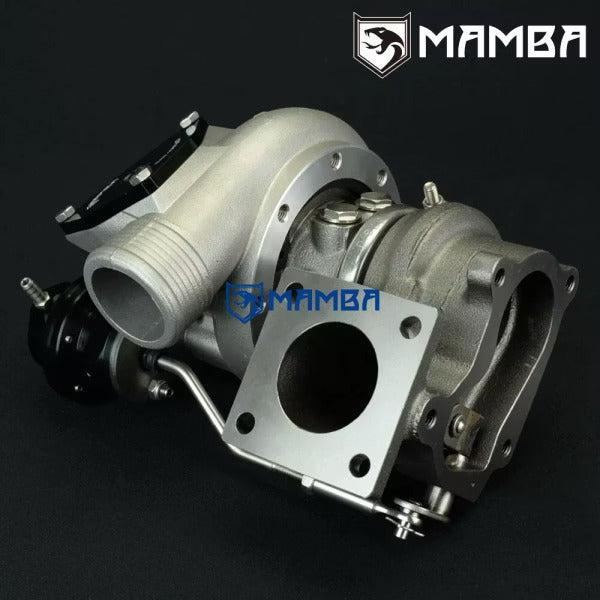

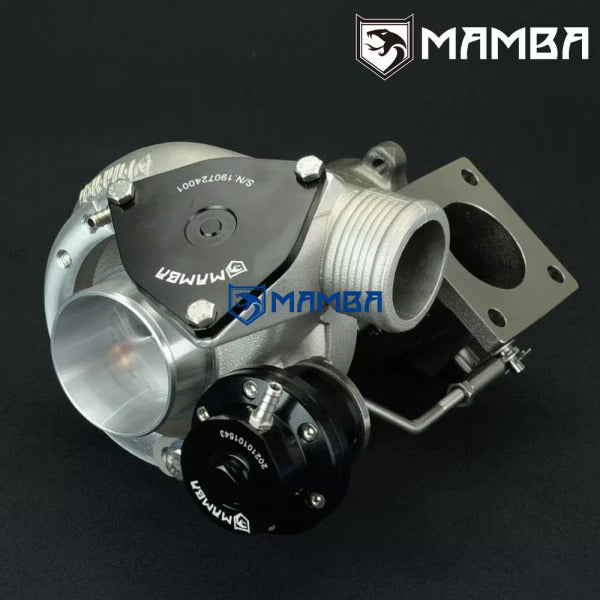

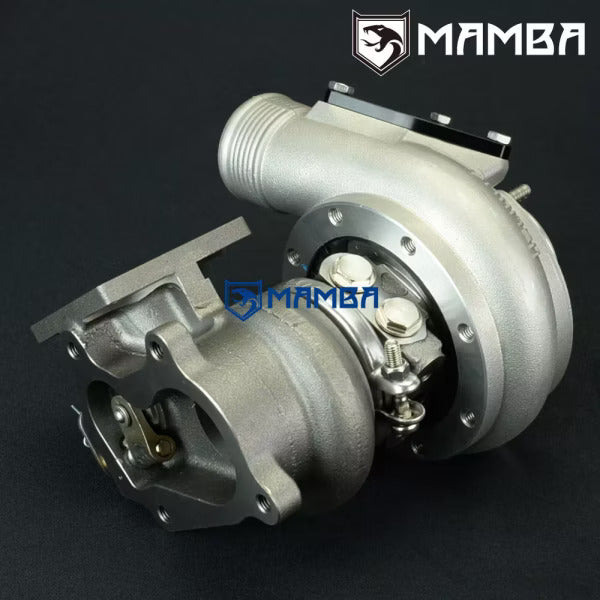

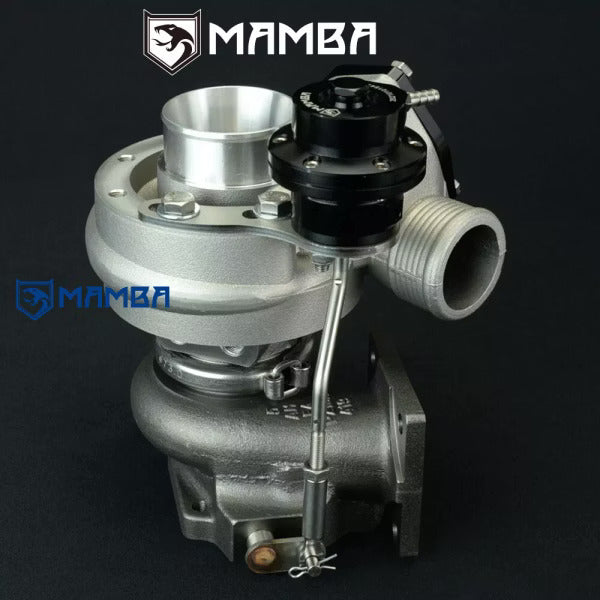

- 2005-16 Mazda MX-5, Miata Convertible with MK III Engine with IHI RHF5 VJ35 Turbo. P/N: VA430091, VB430091, VC430091, VD430091
- This Hybrid turbo comes with a high flow 9 blade TD04L turbine wheel and P16 (6cm) turbine housing to make this turbo spool faster than the factory VJ35 turbo with RHF5 turbine wheel and P20 turbine housing
TD04L-16T
- Supports: 230-280HP
- 6+6 16T (43/56)mm billet wheel supplies more airflow than factory (38/52) to support higher torque and HP
- Comp. Wheel: 43.4/56 mm (6+6 Blade/16T/Extend tapper Tip)

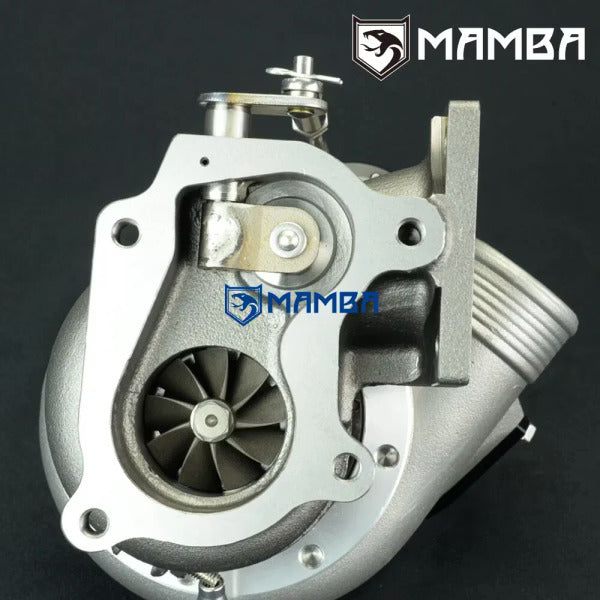

- Turbine Wheel: 41.2/47.2 mm (9 Blade High Flow TD04L)
- Cover Inlet: 60mm / 2.35”
- Cover outlet: 51mm / 2.0”
TD04L-20T
- Supports: 250-320HP
- 6+6 16T (47/58)mm billet wheel supplies more airflow than factory (38/52) to support higher torque and HP
- Comp. Wheel: 47/58 mm (6+6 Blade/16T/Extend tapper Tip)
- Turbine Wheel: 41.2/47.2 mm (9 Blade High Flow TD04L)
- Cover Inlet: 60mm / 2.35”
- Cover outlet: 51mm / 2.0”

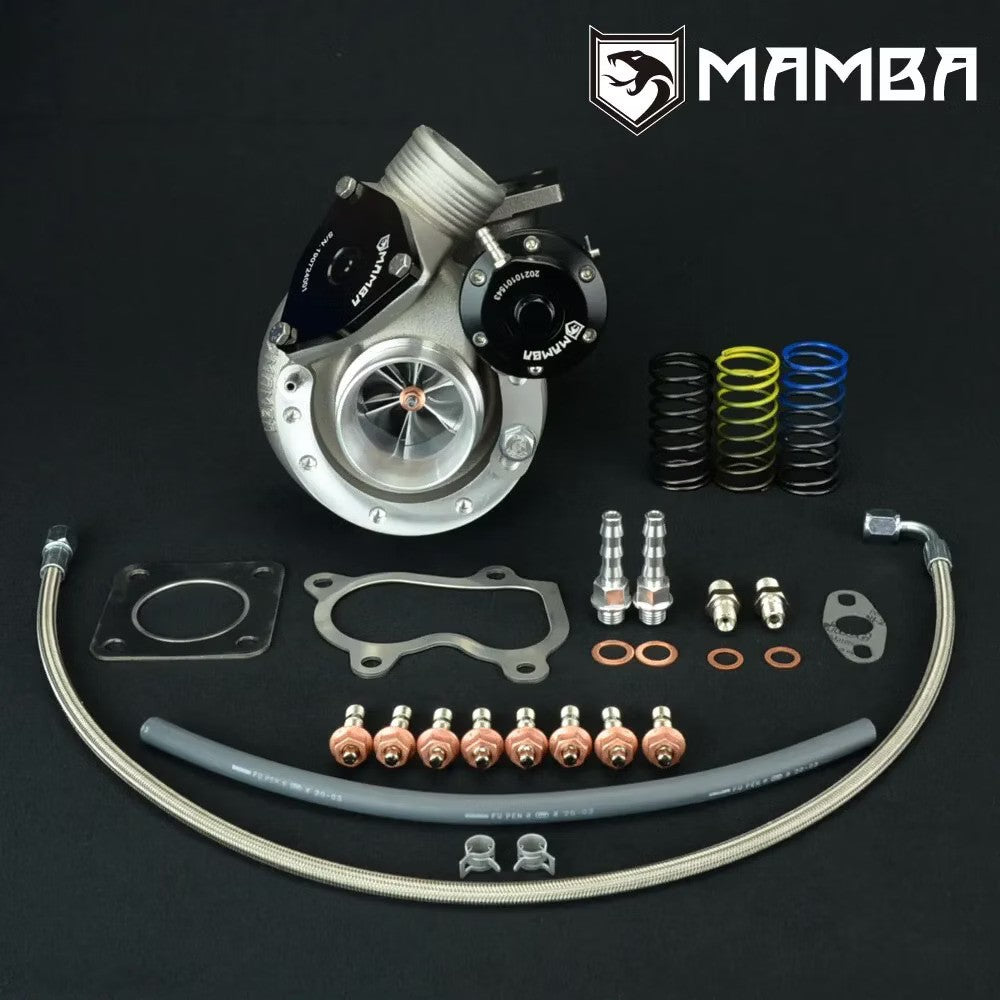

Both Turbos Include:

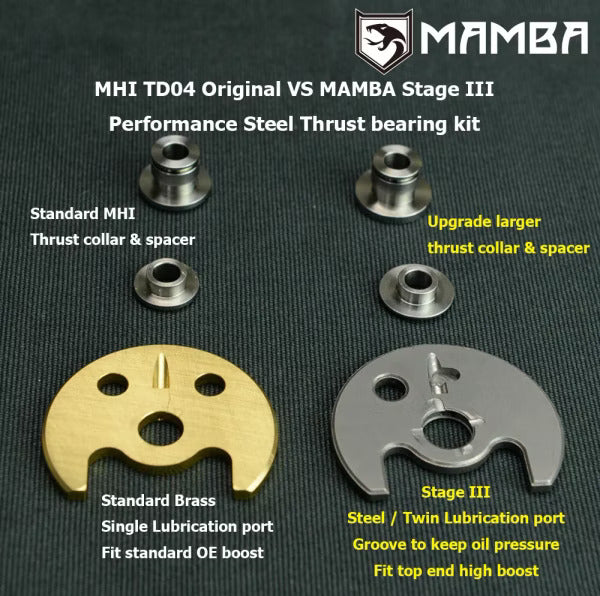

- Performance Journal Bearing
- Oil and Water Cooled

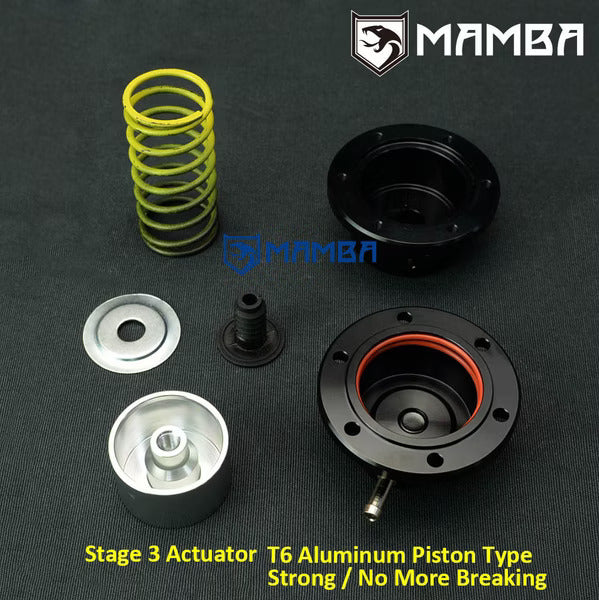

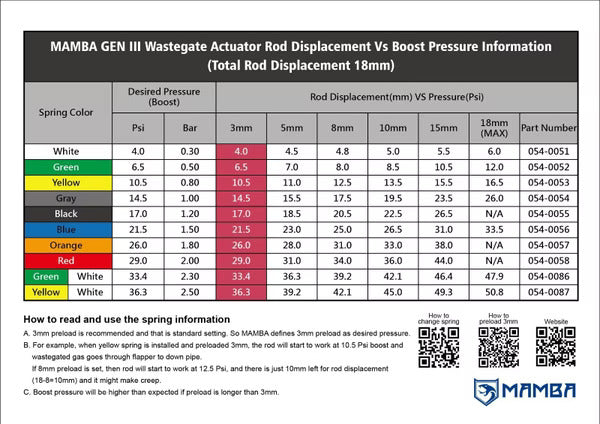

- 0.8bar spring pre-installed
- Additional 1.2bar and 1.5bar springs included
- Fitting Kit
