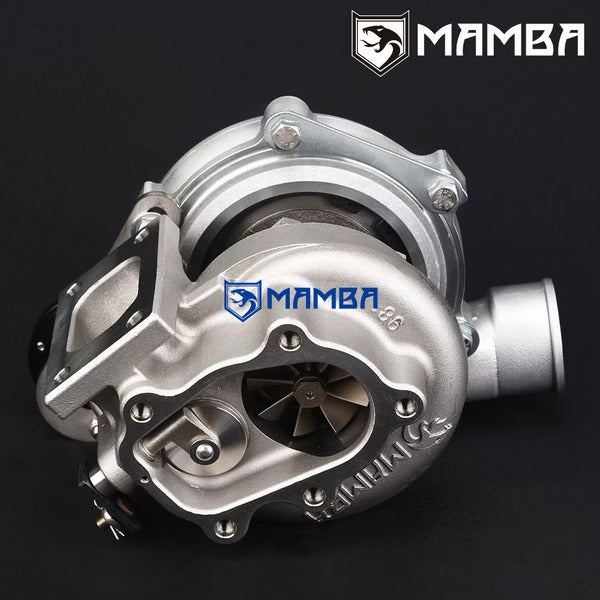

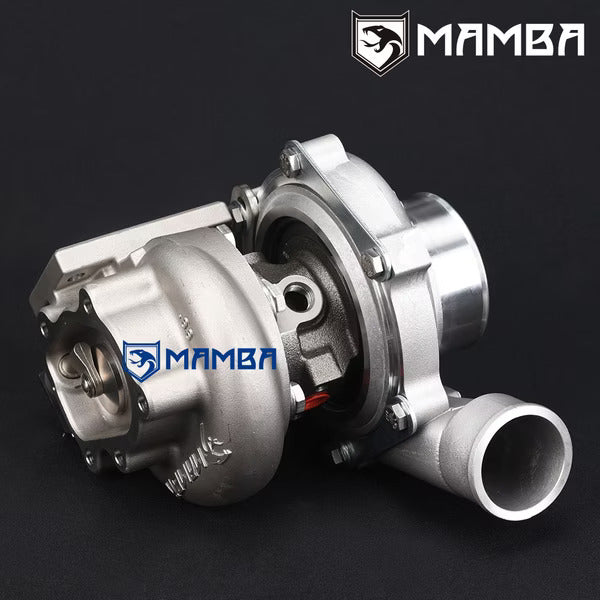

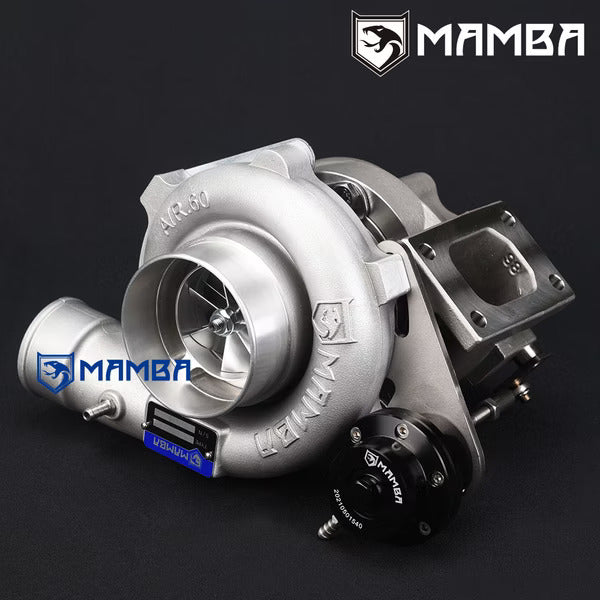

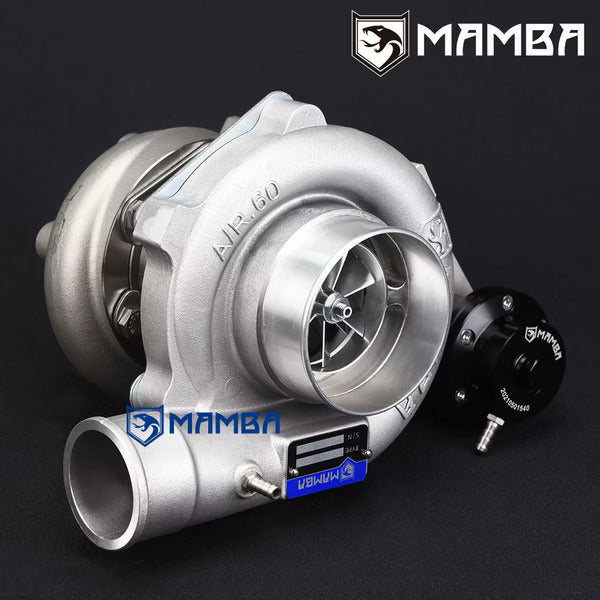

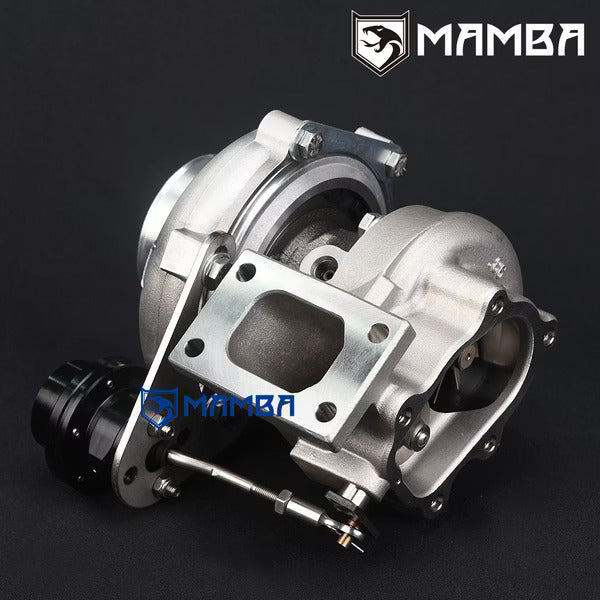

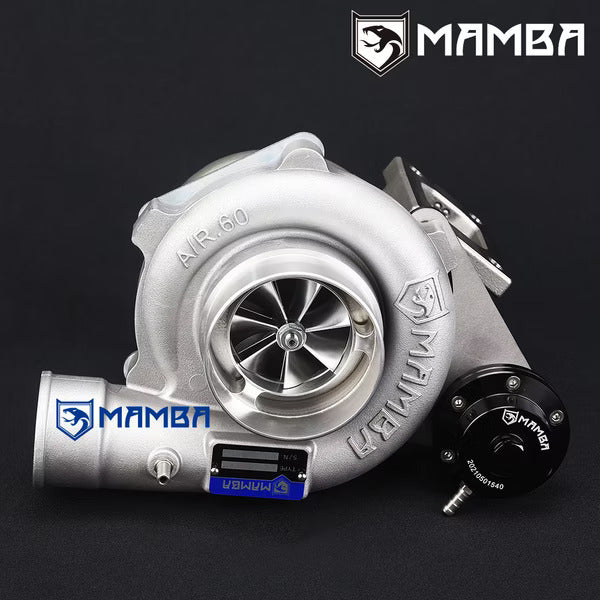

T25 - 5 Bolt GTX2863R

All Mamba turbo chargers are balanced by award winning SCHENCK balancing machinery

• Universal 7+7 3” A/R.60 GTX2863R Ball Bearing
• Rated HP: 300-520
• Engine Capacity Suggestion: 1.5-2.5L (Petrol) 3.5-5.0L (Diesel)

         .42 Hsg.

• Compressor wheel : 47.1mm/63.4mm/56T (7+7 Blade Billet Wheel)

         .64 and .86 Hsg.

• Compressor wheel : 49.7mm/67.4mm/55T (7+7 Blade Billet Wheel)

         All Turbos Include:

• Compressor Housing A/R: .60 (GT28R/PC200/Twisted Anti Surge)

• Compressor Inlet: 3” / 76.2 mm

• Compressor Outlet: 2” / 50.8 mm

• Turbine Housing A/R: .42 or .64 or .86

• Turbine Inlet: T25

• Turbine Outlet: 5 Bolt

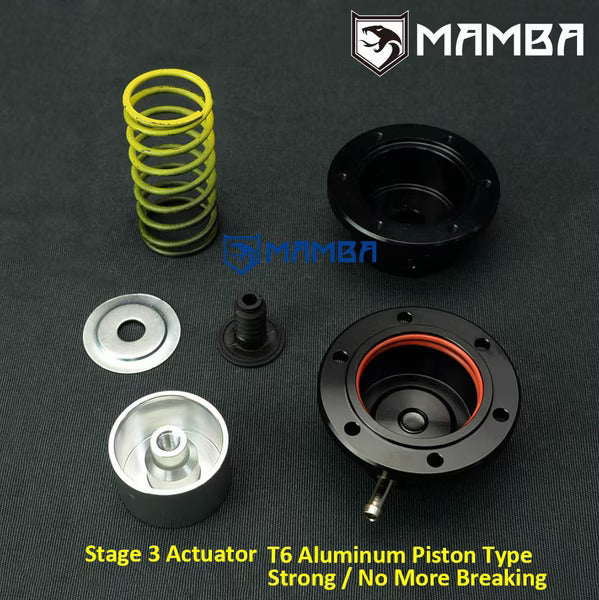

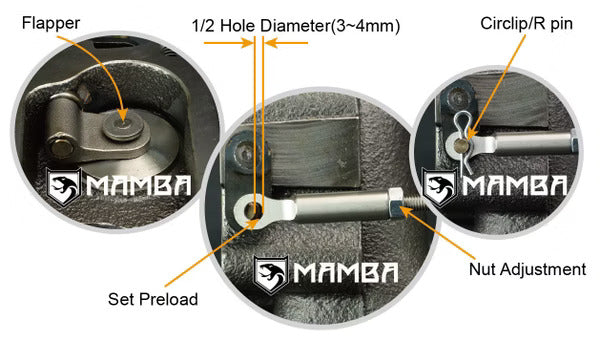

• Internal Wastegate

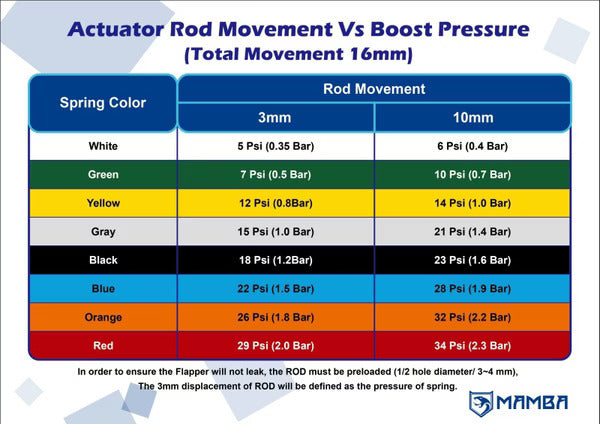

• 0.8bar spring pre-installed

• Additional 1.2bar and 1.5bar springs included

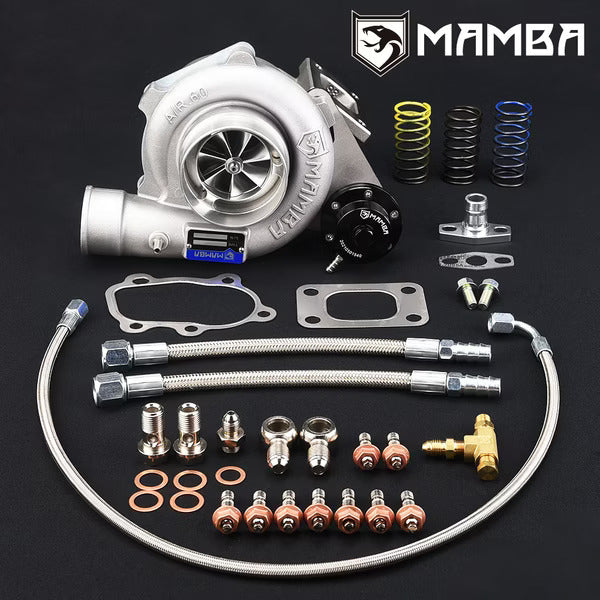

         Fitting Kit Includes:

• 1 x 70cm 1/4” PTFE Oil Feed line with 1.0mm restrictor.
  2 x 25cm 3/8” PTFE Water line
  1 x 3/4” Oil return flange
  1 x SS304 T25 Turbine Inlet Gasket
  1 x SS304 Turbine Outlet Gasket
