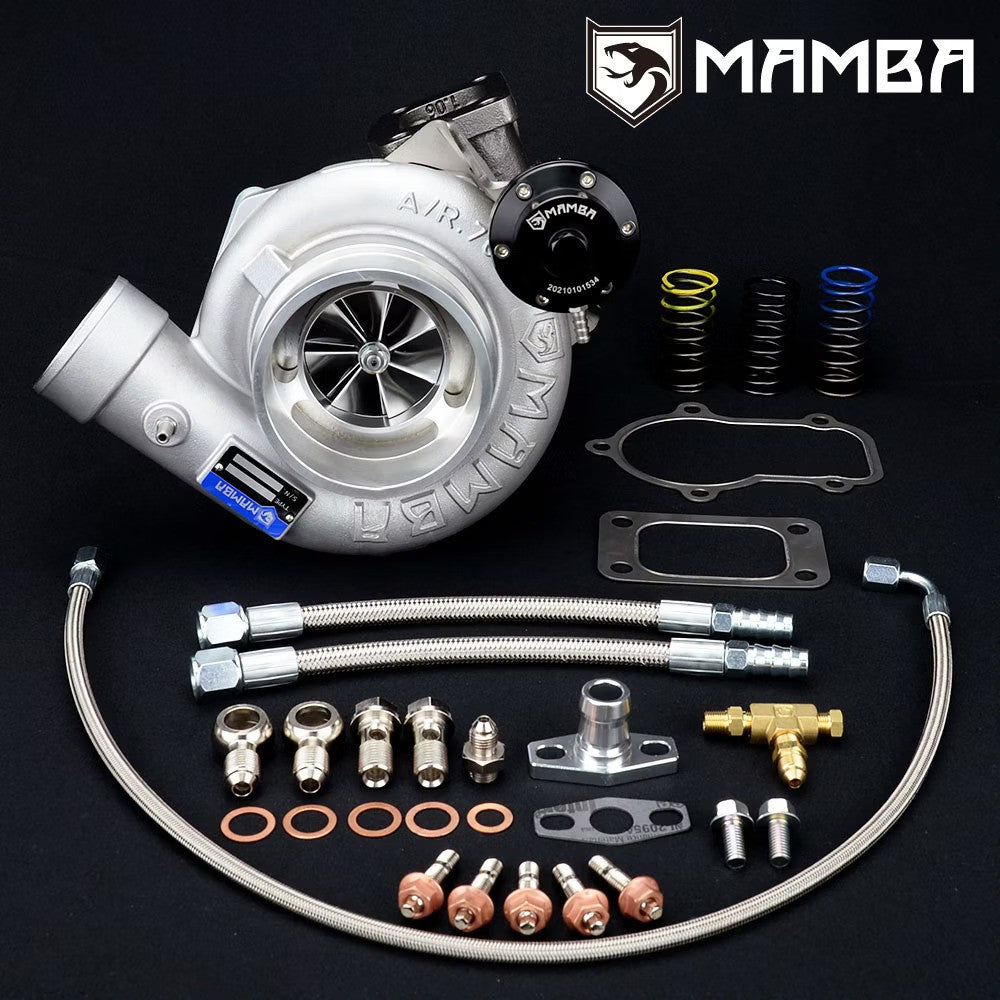

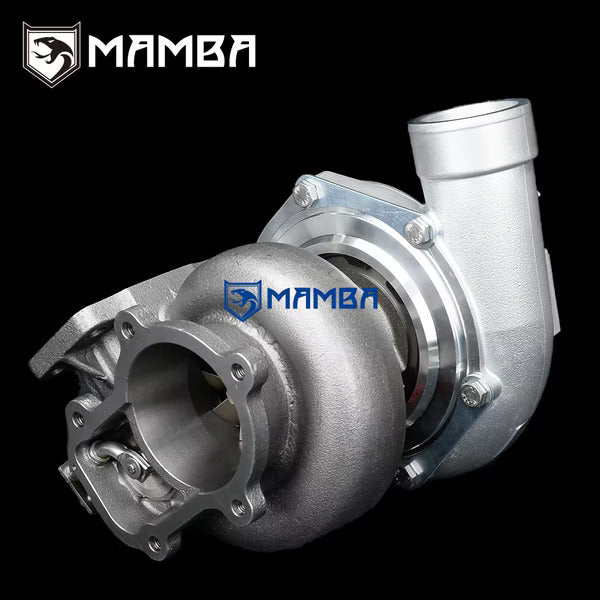

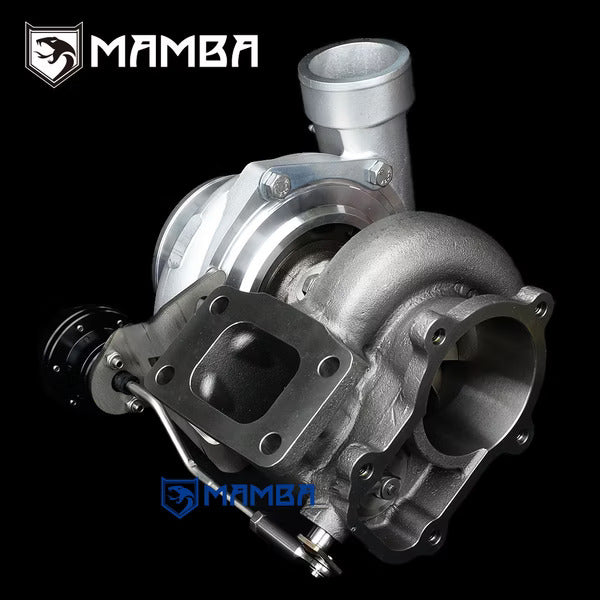

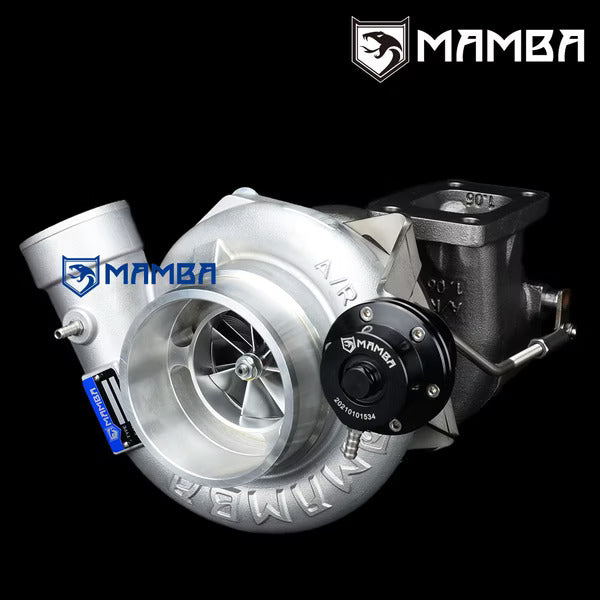

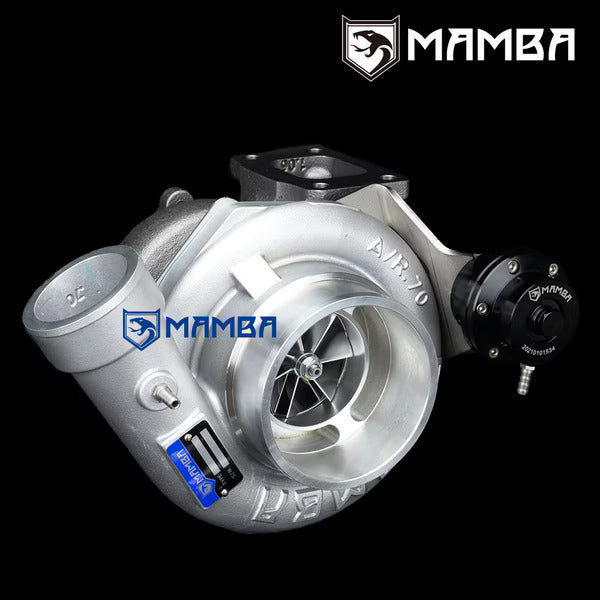

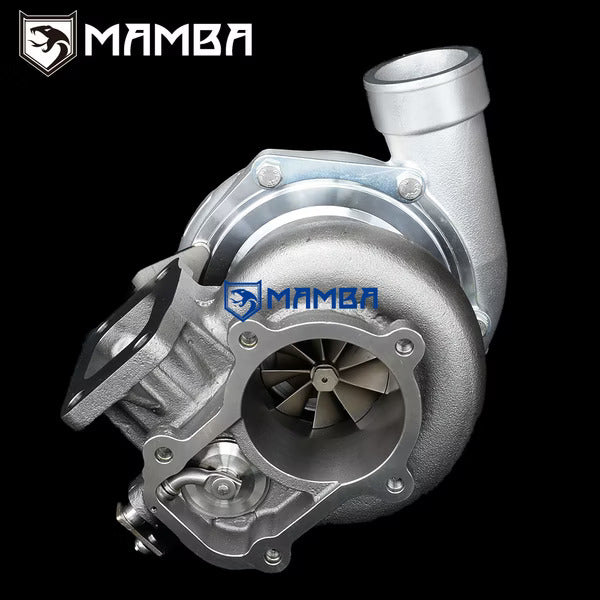

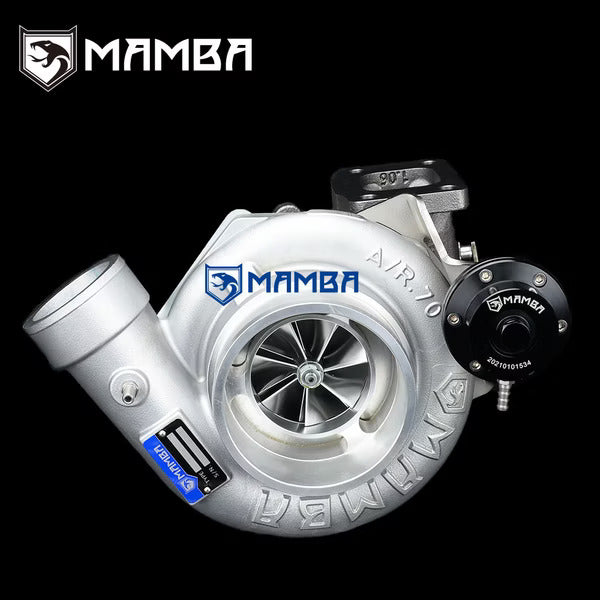

T3 - 5 Bolt XR6 GTX3584R

All Mamba turbo chargers are balanced by award winning SCHENCK balancing machinery

• Universal 7+7 4” A/R.70 GTX3584R Ball Bearing
• Rated HP: 600-900
• Engine Capacity Suggestion: 2.5-4.5L (Petrol) 5.0-8.0L (Diesel)
• Compressor wheel: 66.3mm/84.0mm/62T (7+7 Blade Billet Wheel)

• Turbine wheel: 62.0mm/68.0mm/84T(9 Blade GT(X)35R)

• Compressor Housing A/R: .70(Twisted Anti Surge)

• Compressor Inlet: 4”/101.6 mm

• Compressor Outlet: 2.5”/63.5 mm

• Turbine Housing A/R: 1.05

• Turbine Inlet: T3

• Turbine Outlet: 5 Bolt (XR6)
• Internal Wastegate
• 0.8bar spring pre-installed

• Additional 1.2bar and 1.5bar springs included

• Fitting Kit Included
