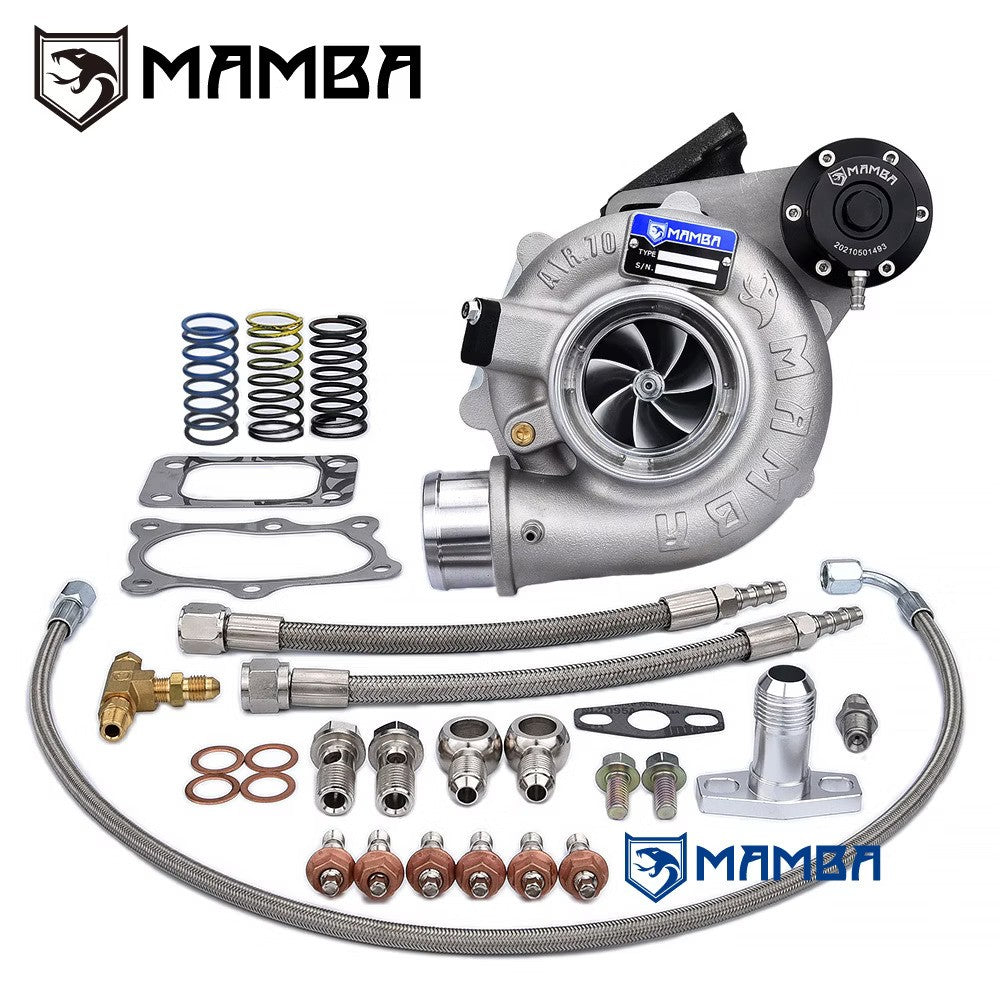

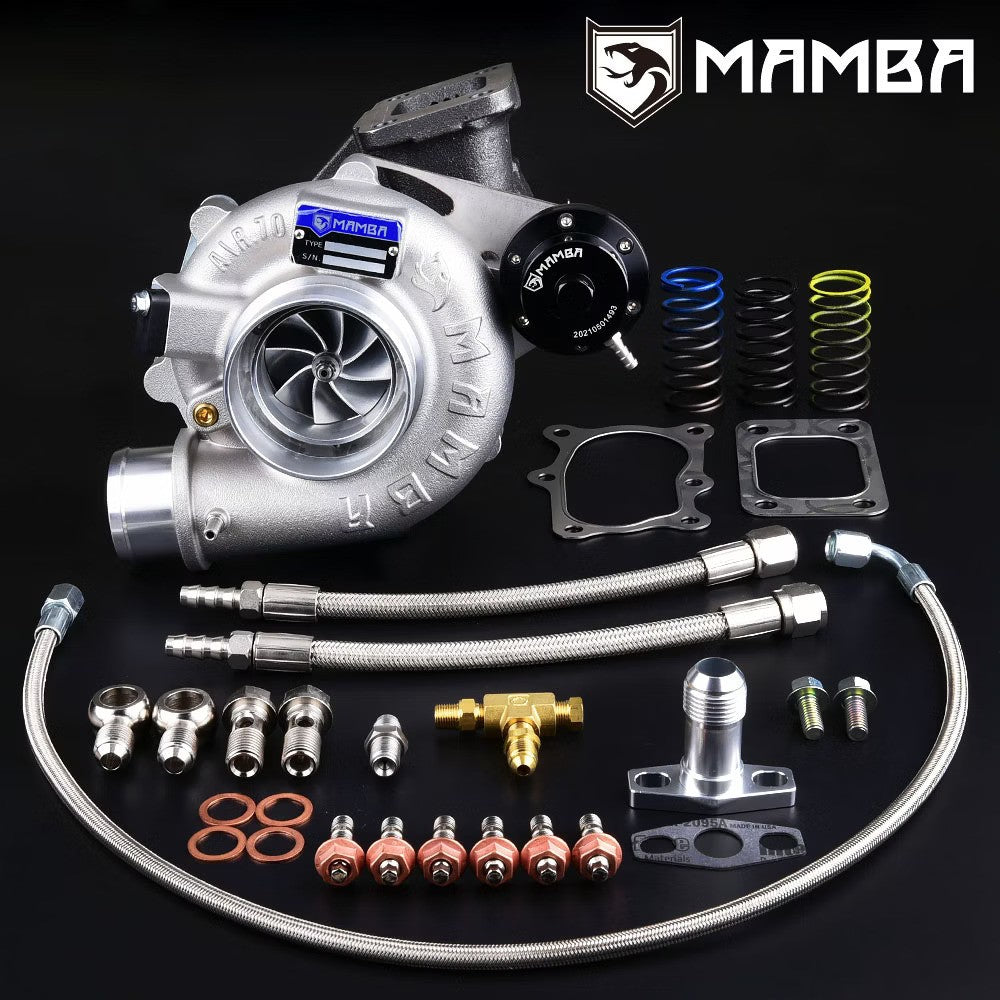

T3 - 6 Bolt RB25 G25-GEN II-GTX2971R

All Mamba turbo chargers are balanced by award winning SCHENCK balancing machinery

• Universal Gen II 3” A/R.70 GTX2971R Ball Bearing
• Rated HP: 400-600

• Engine Capacity Suggestion: 1.8-3.0L (Petrol), 3.5-6.0L (Diesel)
• Max boost: 3.4Bar / Recommend 1.5-1.8bar for daily street car

        7+7 Hsg. .57 and .73

• Compressor Wheel: 54.1/71.0/58T/7+7 Blade/LEP Designed/Billet Wheel)

• Turbine Wheel: 51.8/56.5/84T/9 Blade/GTX29R/G30 Wheel/Inconel 713C

        8+0 Hsg. .57 and .73

• Compressor Wheel: 54.1/71.0/58T (Performance 8+0 Blade Billet Wheel)

• Turbine Wheel: 51.8/56.5/84T (9 Blade GTX29R)

        All Turbos:

• Compressor housing inlet OD: 3” (76.1mm)

• Compressor housing outlet OD: 2” (51mm)

• Compressor housing: G25 A/R .70 Twisted Anti Surge

• Turbine housing A/R: .57 or .73

• Turbine housing material: SS310
• Turbine Inlet: T3

• Turbine Outlet: 6 Bolt RB20-RB25

• Internal Wastegate

• Oil & water-cooled

• Fitting Kit Included
• 0.8bar spring pre-installed
• Additional 1.2bar and 1.5bar springs included
