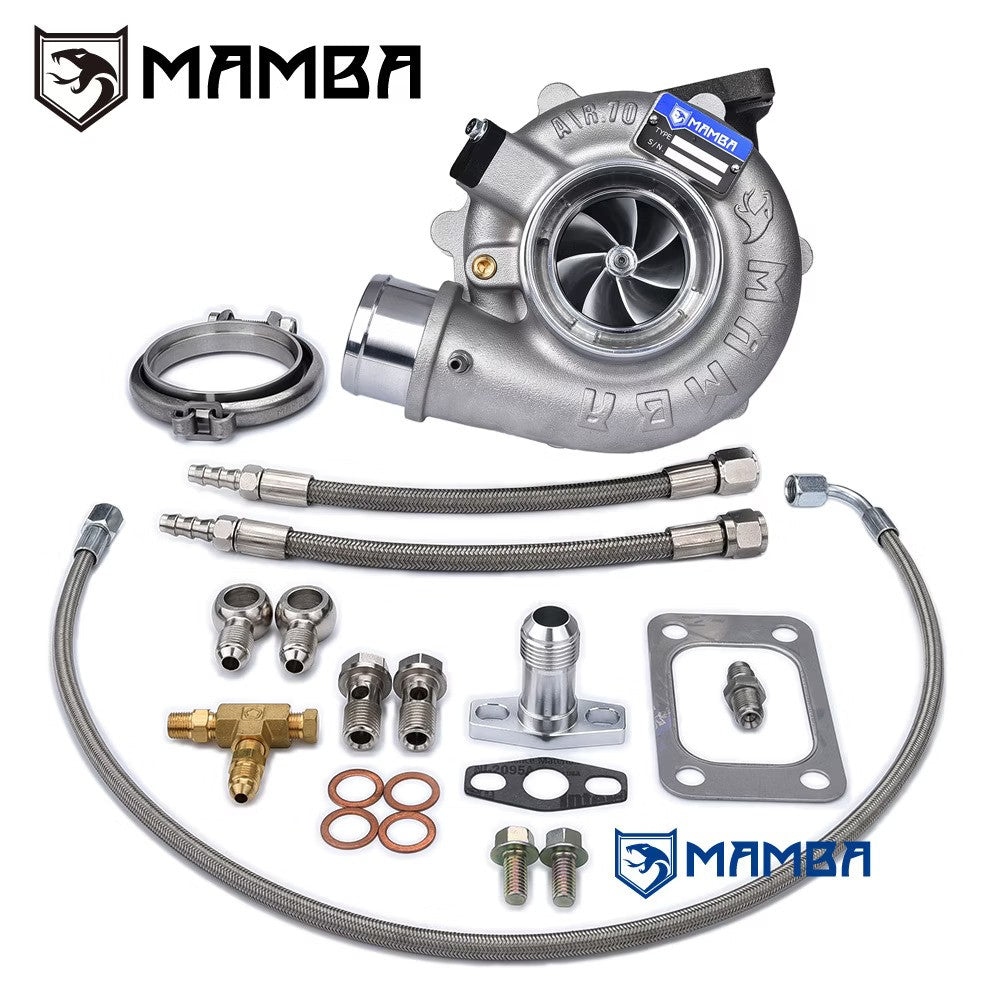

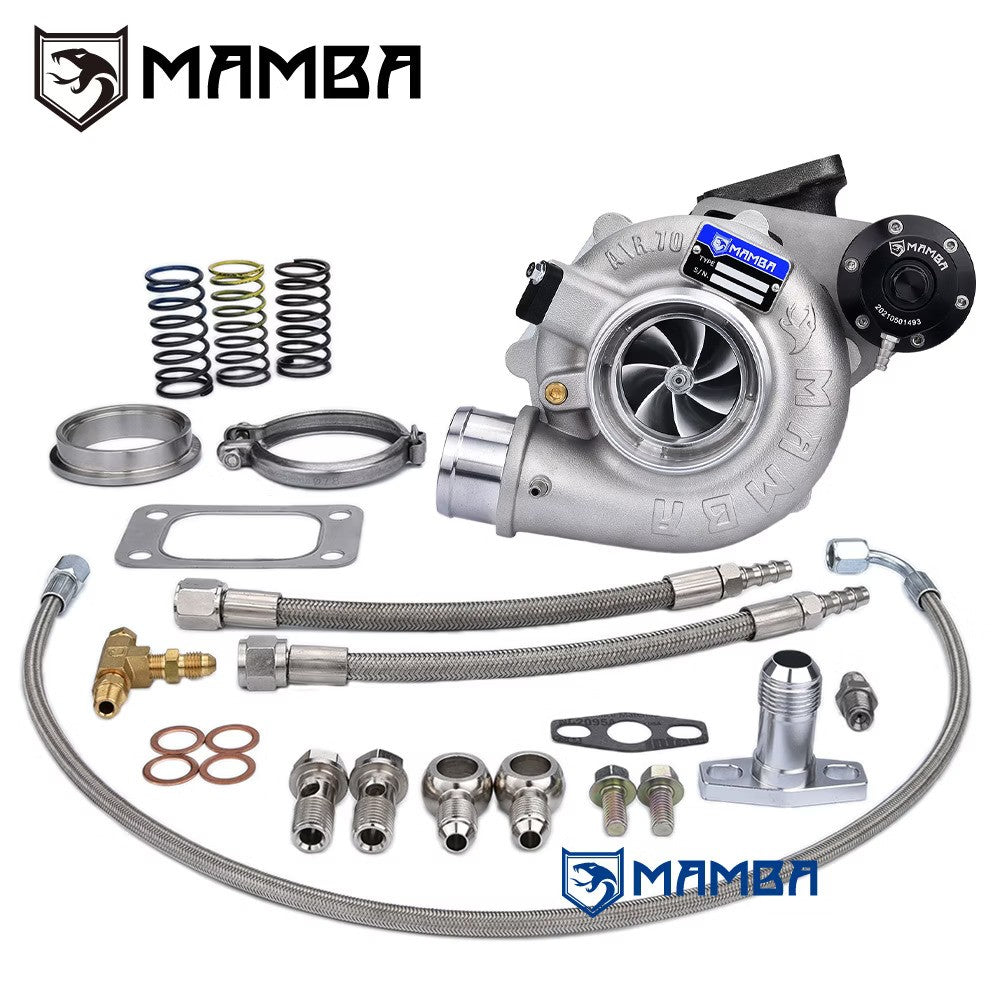

T3 - V-Band G25-GEN II-GTX2860R

All Mamba turbo chargers are balanced by award winning SCHENCK balancing machinery

• Universal Gen II 3” A/R.70 GTX2860R Ball Bearing
• Rated HP: 200-485
• Engine Capacity Suggestion: 1.5-2.5L (Petrol), 3.0-5.0L (Diesel)
• Max boost: 3.4Bar / Recommend 1.5-1.8bar for daily street car

        7+7 Hsg. .42, .57 Internal Wastegate and .64, .73 External Wastegate

• Compressor Wheel: 45.7/60/58T/7+7 Blade/LEP Designed/Billet Wheel

• Turbine Wheel: 47/53.8/76T/9 Blade/GTX28R/G25 Wheel/Inconel 713C
• Compressor Housing Inlet: 3” / 76.1mm

• Compressor Housing Outlet: 2” / 51mm
• Compressor Housing: G25 A/R.70 Twisted Anti Surge
• Turbine Housing A/R: .42 or .57 or .64 or .73

• Turbine Housing Material: SS310

• Turbine Inlet: T3

• Turbine Outlet: 3” V-Band
• Internal or External Wastegate Design
• Oil & water-cooled

• Fitting Kit Included
• 0.8bar spring pre-installed
• Additional 1.2bar and 1.5bar springs included
