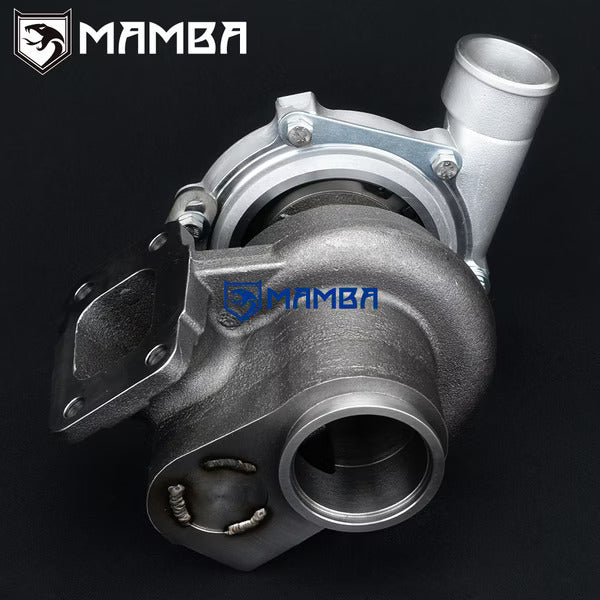

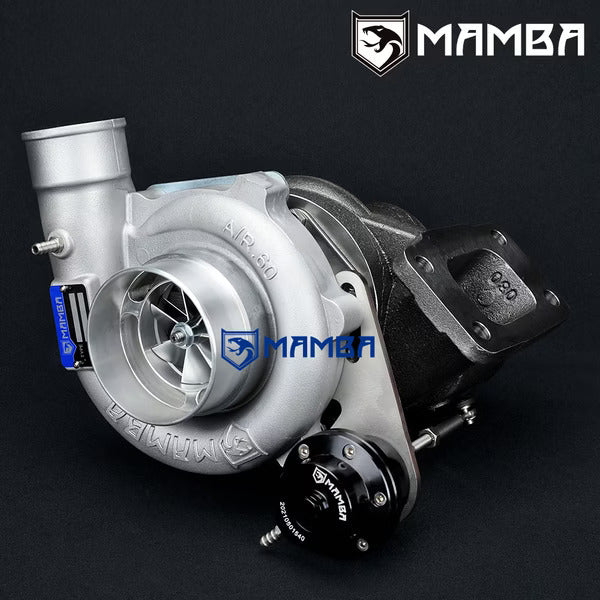

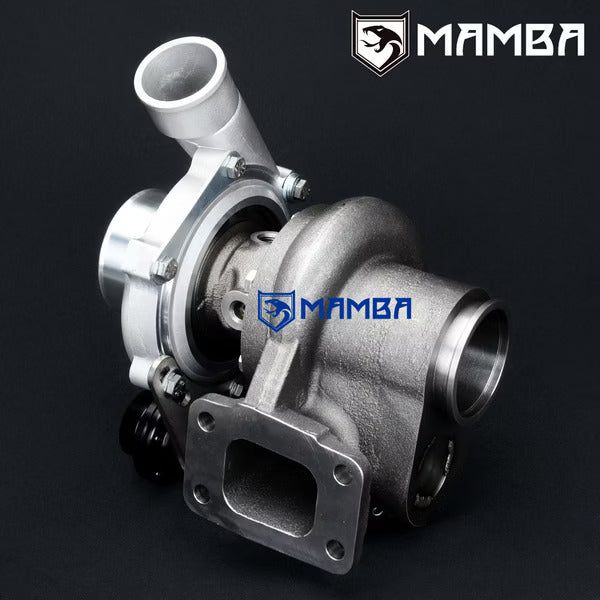

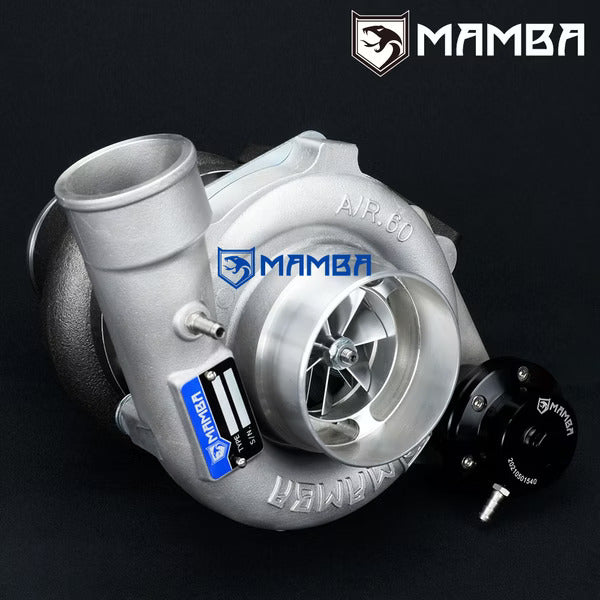

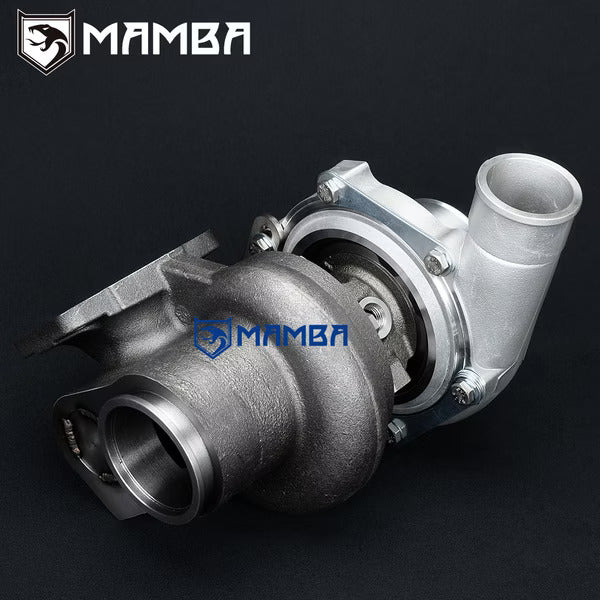

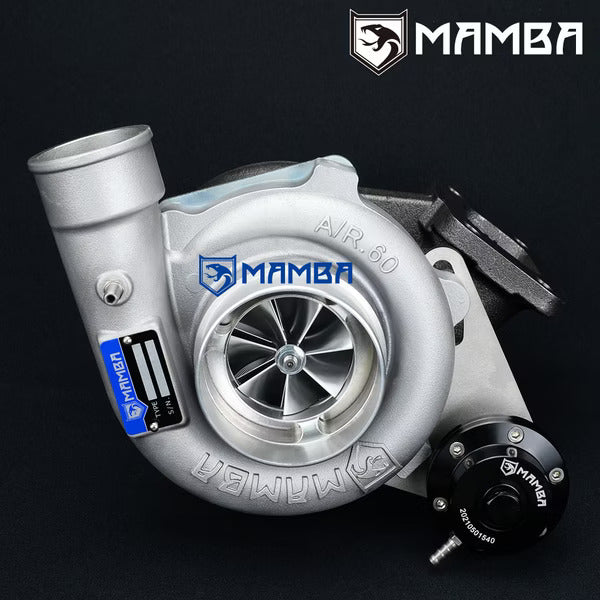

T3 - V-Band Anti Surge GTX2863R

All Mamba turbo chargers are balanced by award winning SCHENCK balancing machinery

• Universal 7+7 3” A/R.60 GTX2863R Ball Bearing
• Rated HP: 300-520
• Engine Capacity Suggestion: 1.5-2.5L (Petrol) 3.0-5.0L (Diesel)
• Compressor wheel: 47.1mm/63.4mm/56T (7+7 Blade Billet Wheel)

• Turbine wheel: 47.0mm/53.8mm/76T (9 Blade GT(X)28R)

• Compressor Housing A/R: .60 (GT28R/PC200/Twisted Anti Surge)

• Compressor Inlet: 3”/76.2mm

• Compressor Outlet: 2”/50.8mm

• Turbine Housing A/R: .42 or .57 or .73

• Turbine Inlet: T3

• Turbine Outlet: V-Band

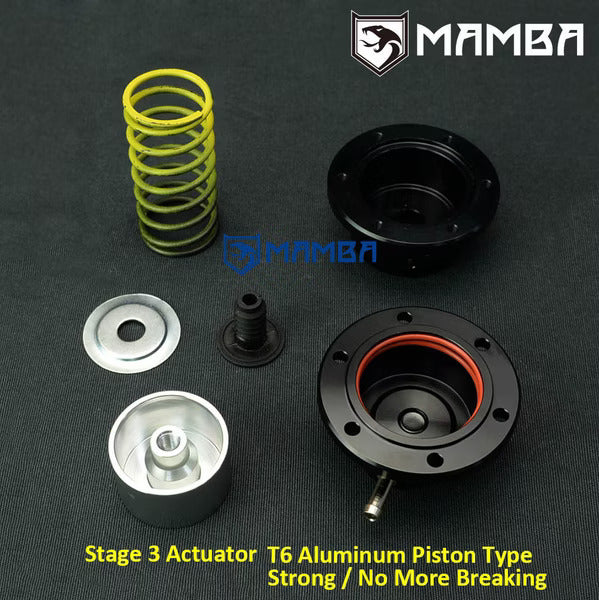

• Internal Wastegate

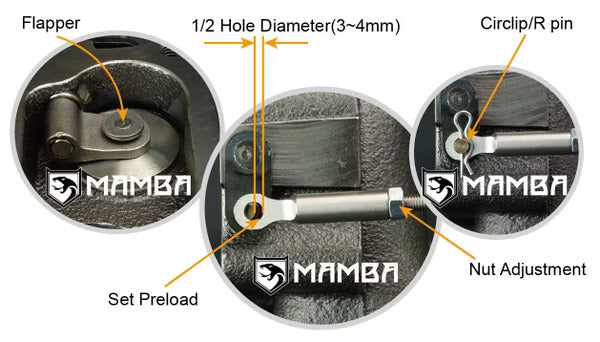

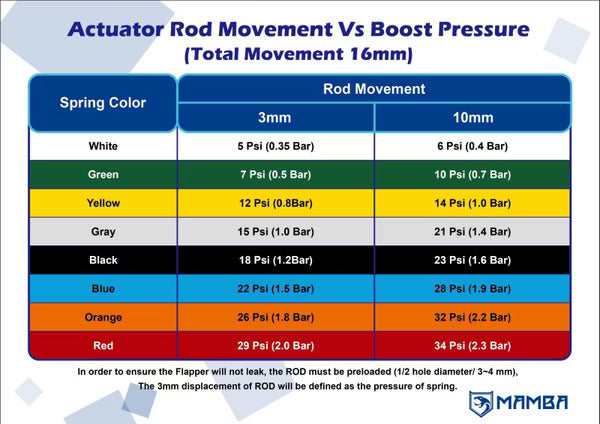

• 0.8bar spring is pre-installed

• Additional 1.2bar and 1.5bar springs included

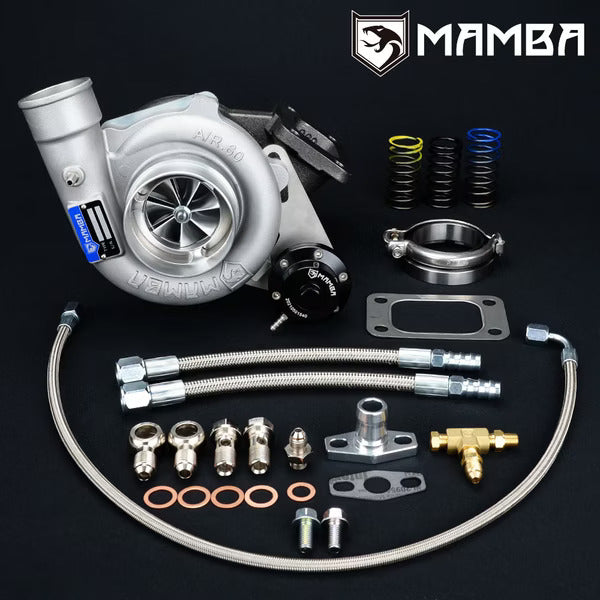

• Fitting Kit Included
