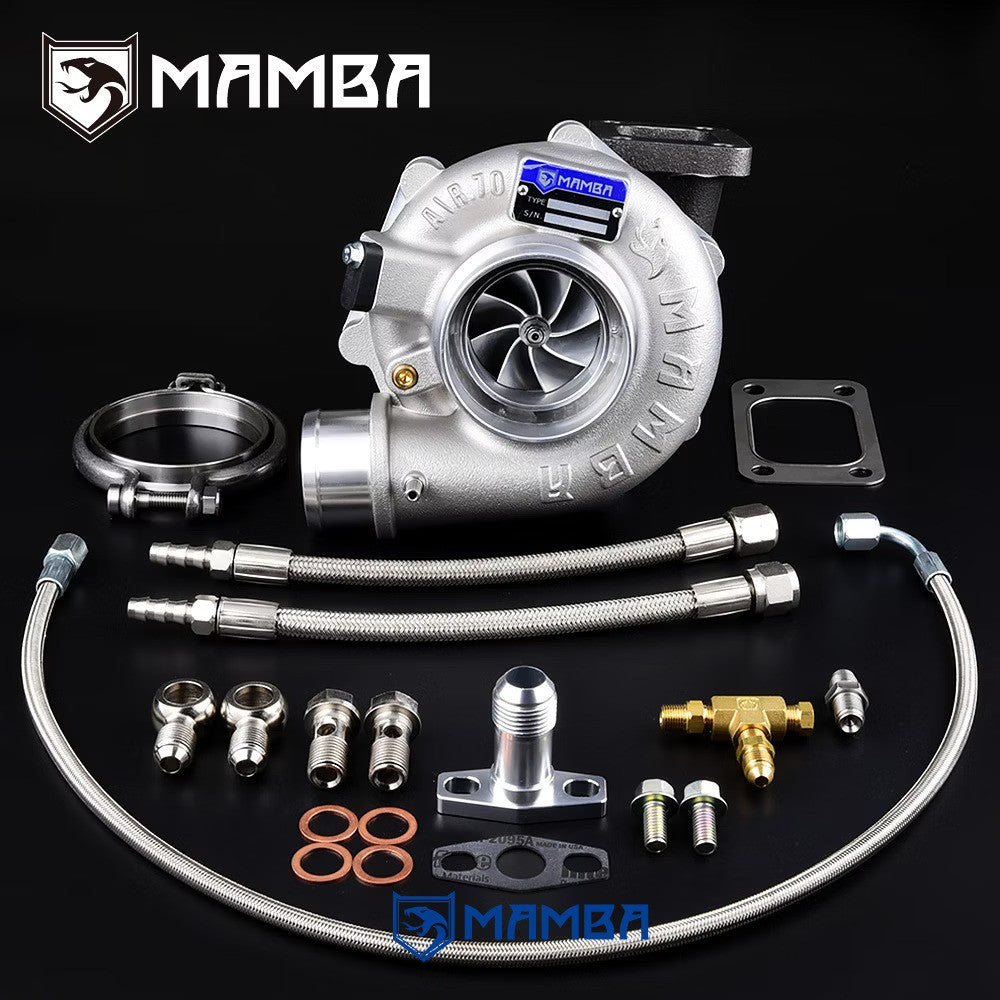

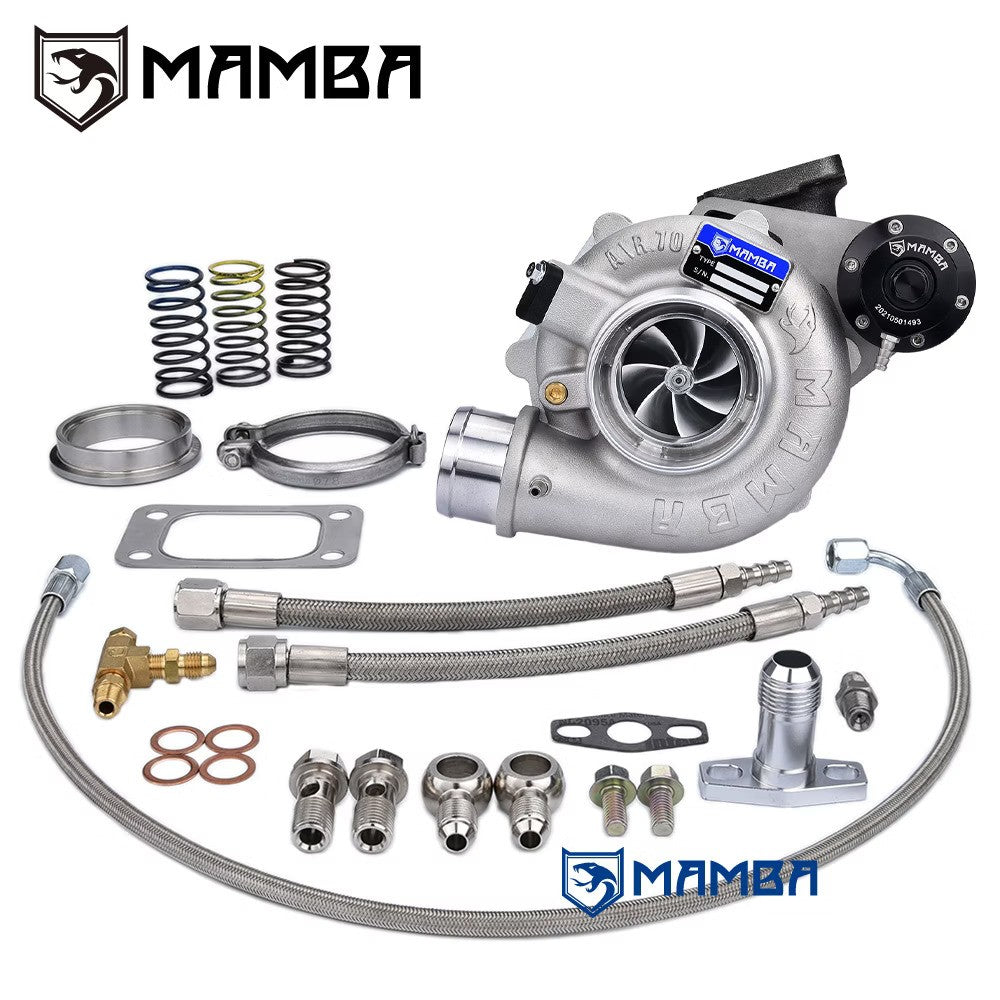

T3 - V-Band G25-GEN II-GTX2867R

All Mamba turbo chargers are balanced by award winning SCHENCK balancing machinery

• Universal Gen II 3” A/R.70 GTX2867R Ball Bearing
• Rated HP: 275-560
• Engine Capacity Suggestion: 1.5-2.5L (Petrol), 3.0-5.0L (Diesel)
• Max boost: 3.4Bar / Recommend 1.5-1.8bar for daily street car

        7+7/8+0 Hsg. .42 and .57 and .73

• Compressor Wheel: 49.7/67.4/55T/7+7 Blade/LEP Designed/Billet Wheel or 49.7/67.4/55T (Performance 8+0 Blade Billet Wheel)

• Turbine Wheel: 47/53.8/76T/9 Blade/GTX28R/G25 Wheel/Inconel 713C or 47/53.8/76T/GTX28R/9 Blade/High Flow/Inconel 713C

• Compressor Housing Inlet: 3” / 76.1mm

• Compressor Housing Outlet: 2” / 51mm
• Compressor Housing: G25 A/R.70 Twisted Anti Surge
• Turbine Housing A/R: .42 or .57 or .73
• Turbine Housing Material: SS310

• Turbine Inlet: T3

• Turbine Outlet: 3” V-Band
• Internal or External Wastegate Design
• Oil & water-cooled

• Fitting Kit Included
• 0.8bar spring pre-installed
• Additional 1.2bar and 1.5bar springs included
