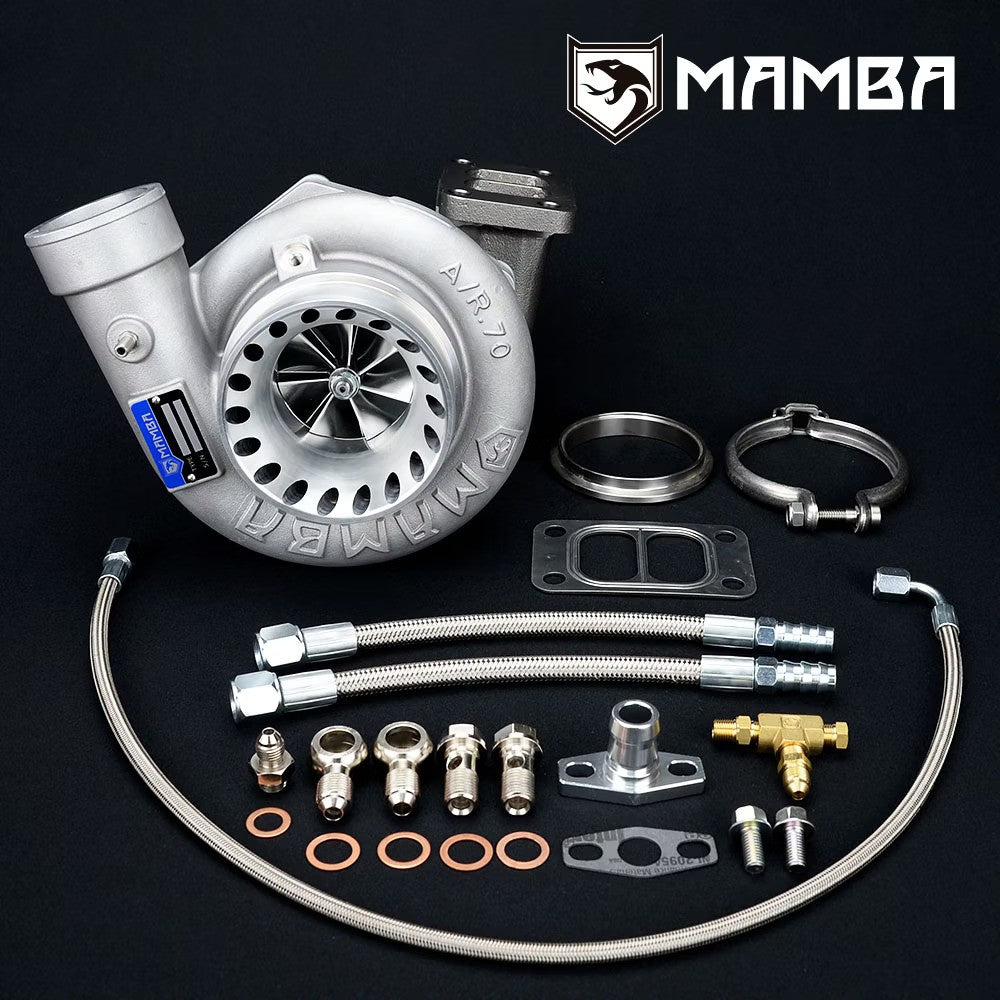

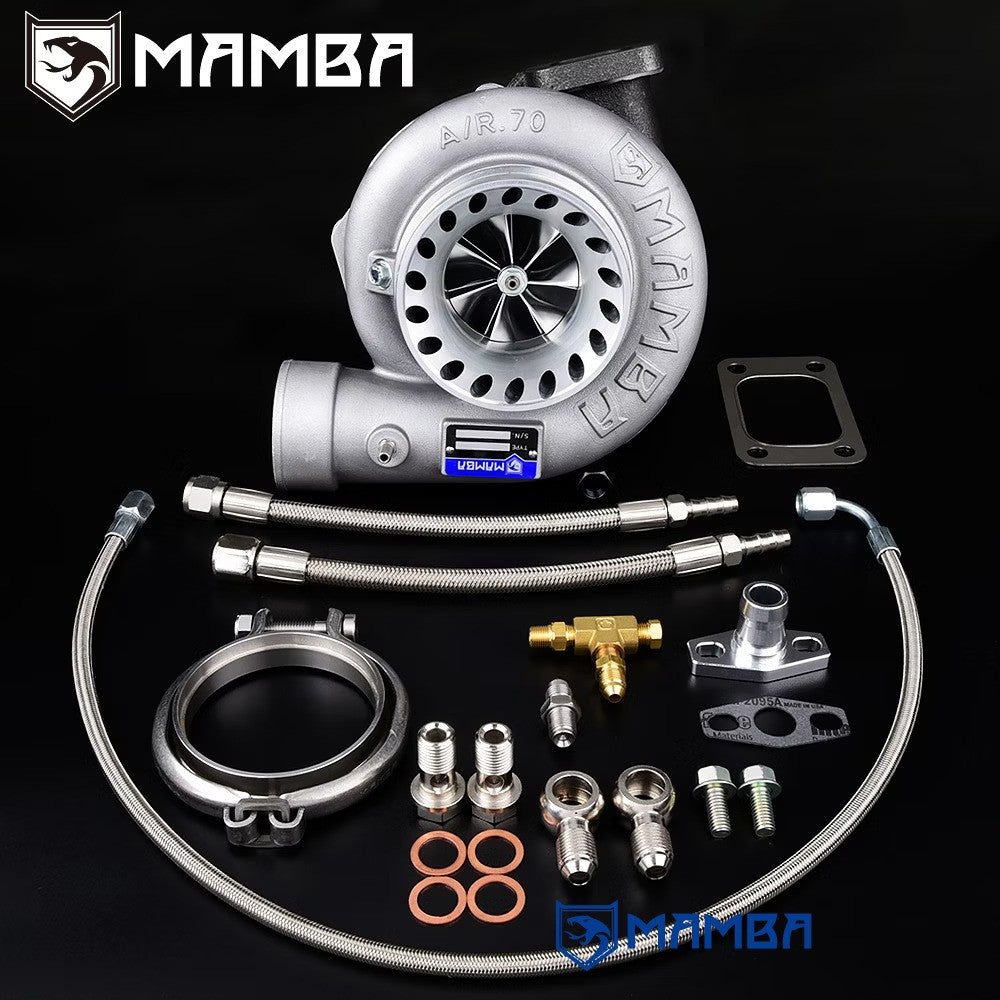

T3 - V-Band GTX3576RS

All Mamba turbo chargers are balanced by award winning SCHENCK balancing machinery

• Universal 7+7 4” A/R.70 GTX3576RS Ball Bearing
• Rated HP: 450-750
• Engine Capacity Suggestion: 1.5-3.0L (Petrol) 3.0-6.0L (Diesel)
• Compressor wheel: 59.0mm/76.1mm/60T (7+7 Blade Billet Wheel)

• Turbine wheel: 62.0mm/68.0mm/84T (9 Blade GT(X)35R)

• Compressor Housing A/R: .70 (Bullet Anti-Surge)

• Compressor Inlet: 4”/101.6 mm

• Compressor Outlet: 2.5”/63.5 mm

• Turbine Housing A/R: .64 or .73 or .82

• Turbine Inlet: T3 or T3 Twin Scroll

• Turbine Outlet: 3” V-Band
• External Wastegate Design
• NTN Ceramic Dual Ball Bearing
• Oil and Water-Cooled system
• Fitting Kit Included
