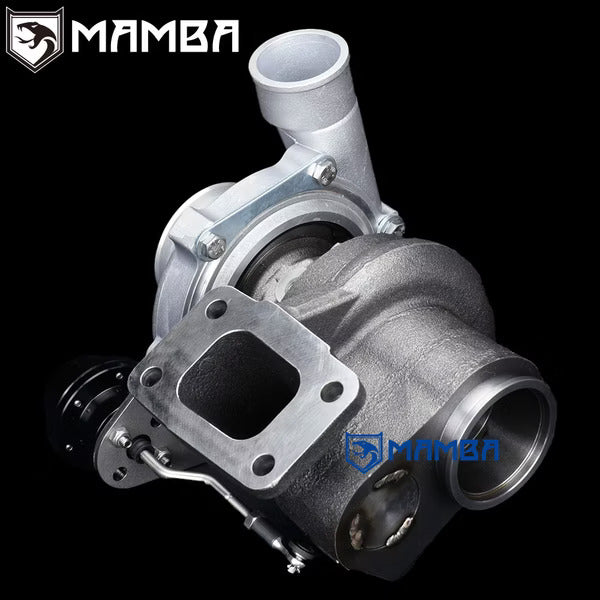

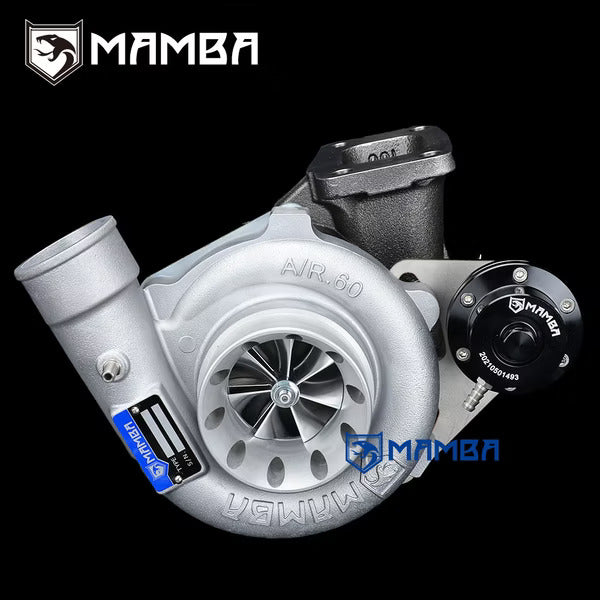

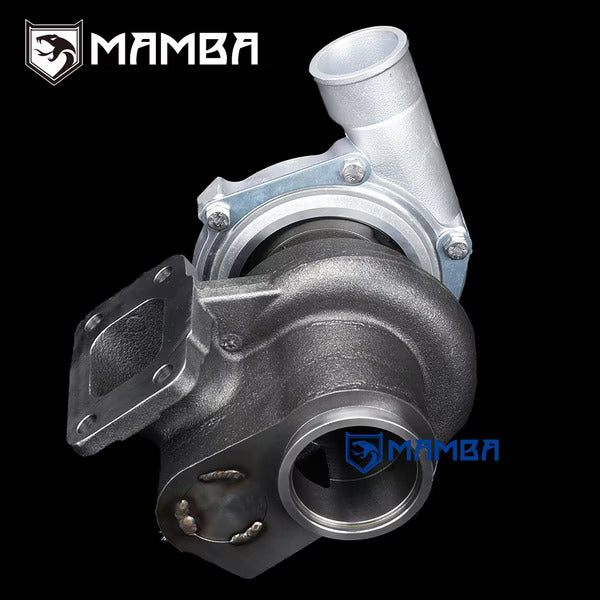

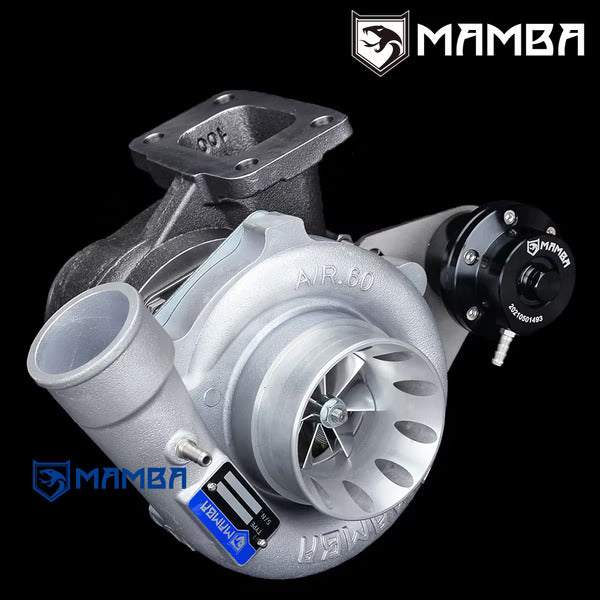

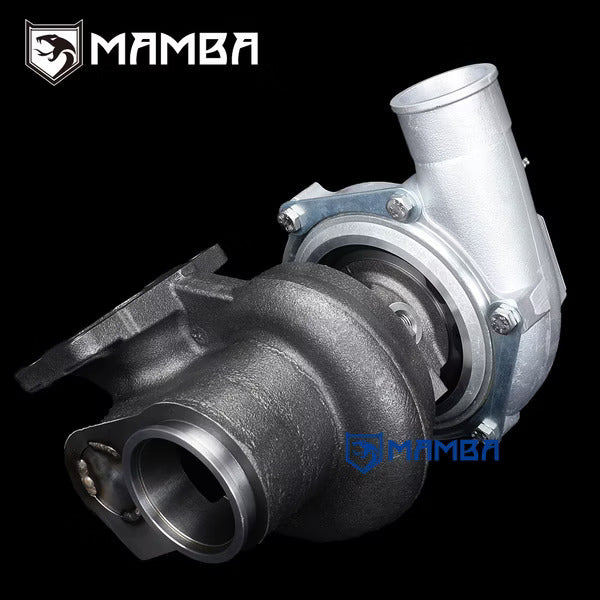

T3 - V-Band Internal Wastegate GTX2871R

All Mamba turbo chargers are balanced by award winning SCHENCK balancing machinery

• Universal 7+7 3” A/R.60 GTX2871R Ball Bearing
• Rated HP: 350-580
• Engine Capacity Suggestion: 1.5-3.0L (Petrol) 3.0-6.0L (Diesel)
• Compressor wheel: 54.1mm/71.4mm/58T (7+7 Blade Billet Wheel)

• Turbine wheel: 47.0mm/53.8mm/76T(9 Blade GT(X)28R)

• Compressor Housing A/R: .60 (GT28R/PC200/Bullet Anti Surge)

• Compressor Inlet: 3”/76.2mm

• Compressor Outlet: 2”/50.8mm

• Turbine Housing A/R: .57 or .73

• Turbine Inlet: T3

• Turbine Outlet: V-Band
• Internal Wastegate

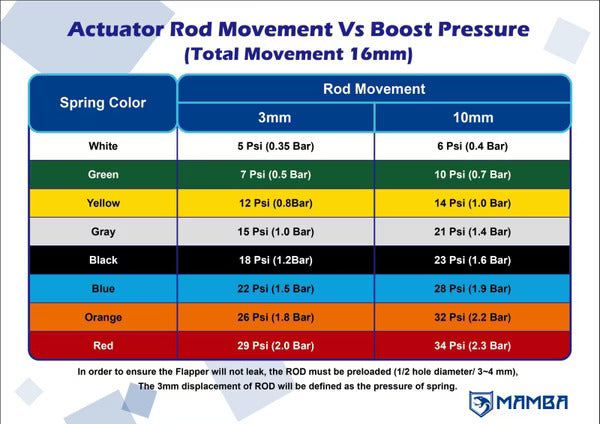

• 0.8bar spring pre-installed

• Additional 1.2bar and 1.5bar springs

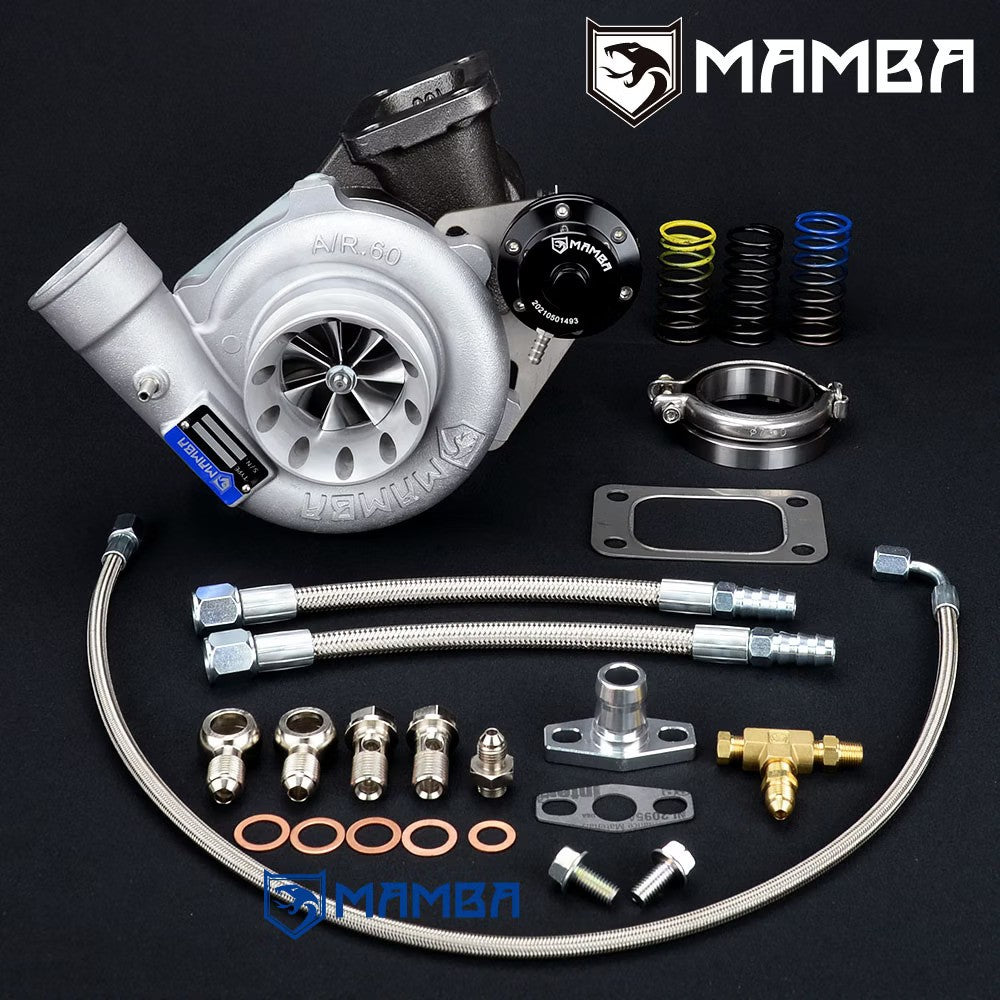

• Fitting Kit Includes
