All Mamba turbo chargers are balanced by award winning SCHENCK balancing machinery.
-
Nissan Safari/Patrol GR/GQ TD42 Diesel
12-6 TD05H-16G 6cm Bolt-On Hsg Low Mount
- Turbine housing can bolt up to fit factory exhaust manifold and dump pipe. (Low Mount)
- Intake pipe needs to be modified to fit the 3” Inlet
-
Compressor Wheel: 48.3 / 68mm (6+6 Blade Billet Wheel 16G with Extended Tip)
- Turbine Wheel: 49.2 / 56.4 mm (12 Blade TD05H High Inconel)
- Compressor Housing: 3” Inlet / 2” Outlet (76mm Inlet / 51mm Outlet)
- 6cm ^2
- T3 Flange
-
Bolt-on 6 bolt outlet
- Oil and Water-cooled
12-6 TD05H-18G 6cm Bolt-On Hsg Low Mount
- Turbine housing can bolt up to fit factory exhaust manifold and dump pipe. (Low Mount)
- Intake pipe needs to be modified to fit the 3” Inlet
- Comp. Wheel: 50.39 / 68mm (6+6 Blade Billet Wheel 18G with Extended Tip)
- Turbine Wheel: 49.2 / 56.4 mm (12 Blade TD05H High Inconel)
- Compressor Housing: 3” Inlet / 2” Outlet (76mm Inlet / 51mm Outlet)
- 6cm^2
- T3 Flange
-
Bolt-on 6 bolt outlet
- Oil and Water-cooled
12-6 TD05H-20G 6cm Bolt-On Hsg Low Mount
- Turbine housing can bolt up to fit factory exhaust manifold and dump pipe. (Low Mount)
- Intake pipe needs to be modified to fit the 3” Inlet
- Comp. Wheel: 52.5 / 68mm (6+6 Blade Billet Wheel 20G with Extended Tip)
- Turbine Wheel: 49.2 / 56.4 mm 912 Blade TD05H High Inconel)
- Compressor Housing: 3” Inlet / 2” Outlet (76mm Inlet / 51mm Outlet)
- 6cm^2
- T3 Flange
-
Bolt-on 6 bolt outlet
- Oil and Water-cooled
12-6 TD05H-16G 6cm Bolt-On Hsg Top Mount
- Top Mount
- Compressor Wheel: 48.3 / 68mm (6+6 Blade Billet Wheel 16G with Extended Tip)
- Turbine Wheel: 49.2 / 56.4 mm (12 Blade TD05H High Inconel)
- Compressor Housing: 3” Inlet / 2” Outlet (76mm Inlet / 51mm Outlet)
- 6cm^2
- T3 Flange
-
Bolt-on 6 bolt outlet
- Oil and Water-cooled
12-6 TD05H-16G 6cm V-Band Hsg Top Mount
- Top Mount
- Compressor Wheel: 48.3 / 68mm (6+6 Blade Billet Wheel 16G with Extended Tip)
- Turbine Wheel: 49.2 / 56.4 mm (12 Blade TD05H High Inconel)
- Compressor Housing: 3” Inlet / 2” Outlet (76mm Inlet / 51mm Outlet)
- 6cm^2
- T3 Flange/V-Band
- Bolt-on 6 bolt outlet
- Oil and Water-cooled
12-6 TD05H-18G 6cm V-Band Hsg Top Mount
- Top Mount
- Compressor Wheel: 50.39 / 68mm (6+6 Blade Billet Wheel 18G with Extended Tip)
- Turbine Wheel: 49.2 / 56.4 mm (12 Blade TD05H High Inconel)
- Compressor Housing: 3” Inlet / 2” Outlet (76mm Inlet / 51mm Outlet)
- 6cm^2
- T3 Flange/V-Band
- Bolt-on 6 bolt outlet
- Oil and Water-cooled
9-11 TD05H-18G 6cm Bolt-On Hsg Low Mount
- Turbine housing can bolt up to fit factory exhaust manifold and dump pipe. (Low Mount)
- Intake pipe needs to be modified to fit the 3” Inlet
-
Comp. Wheel: 50.5 mm / 68 mm (GTX 11 Blade Billet Wheel 18G with Extended Tip)
- Turbine Wheel: 49.2 / 56.4 mm (9 blade TD05H Performance High Inconel)
- Comp. Housing: 3” Inlet / 2” Outlet (76.2mm Inlet / 51mm Outlet / Non Anti Surge)
- 6cm^2
- T3 Flange
-
Bolt-on 6 bolt outlet
- Oil and Water-cooled

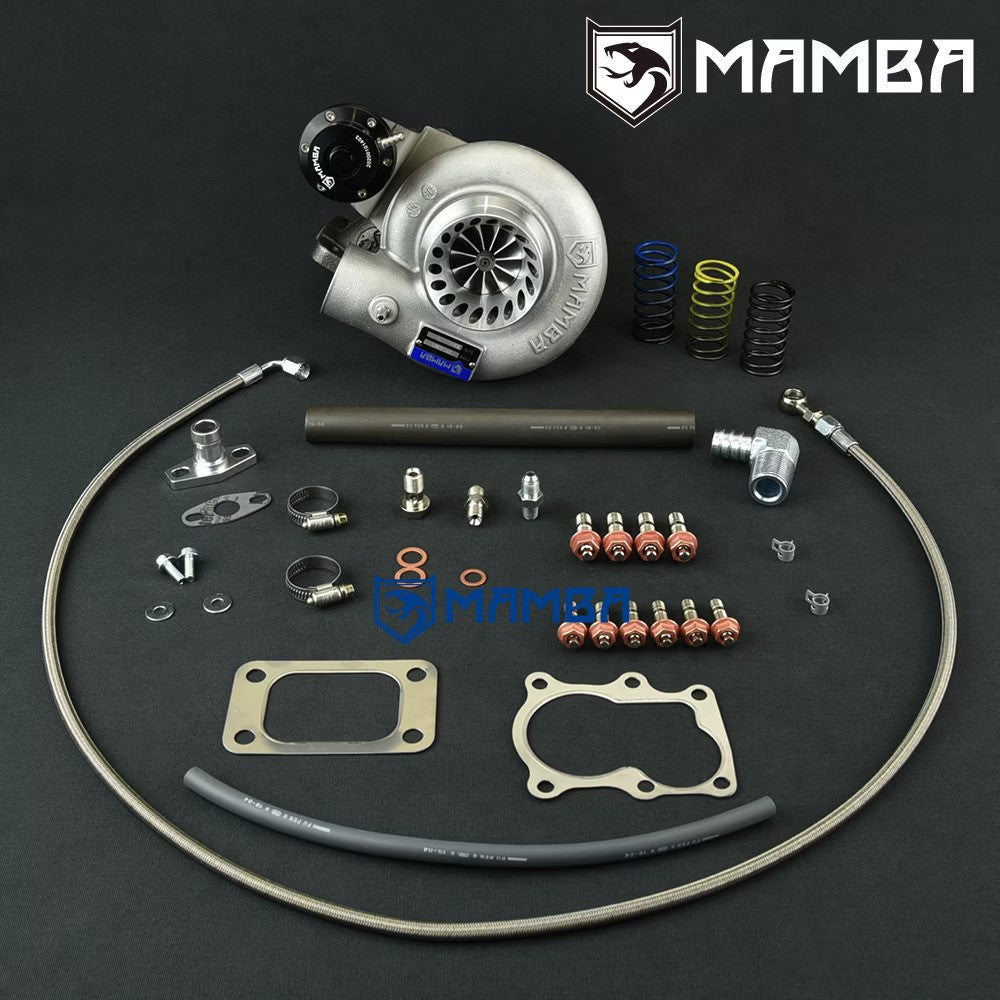

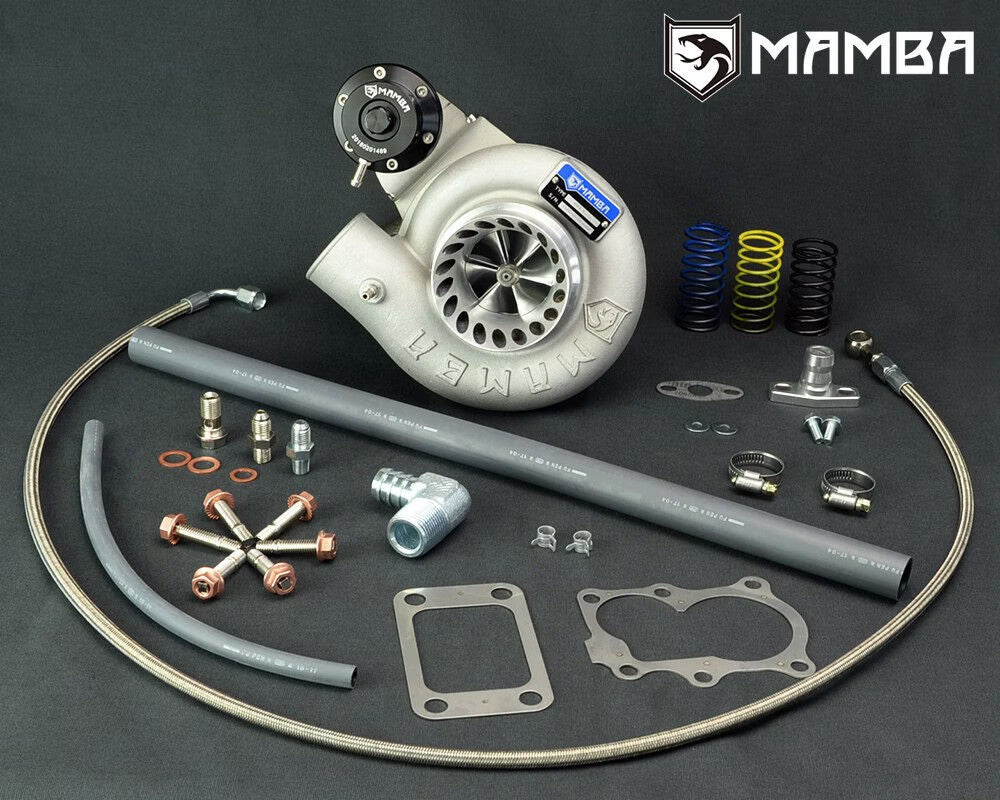

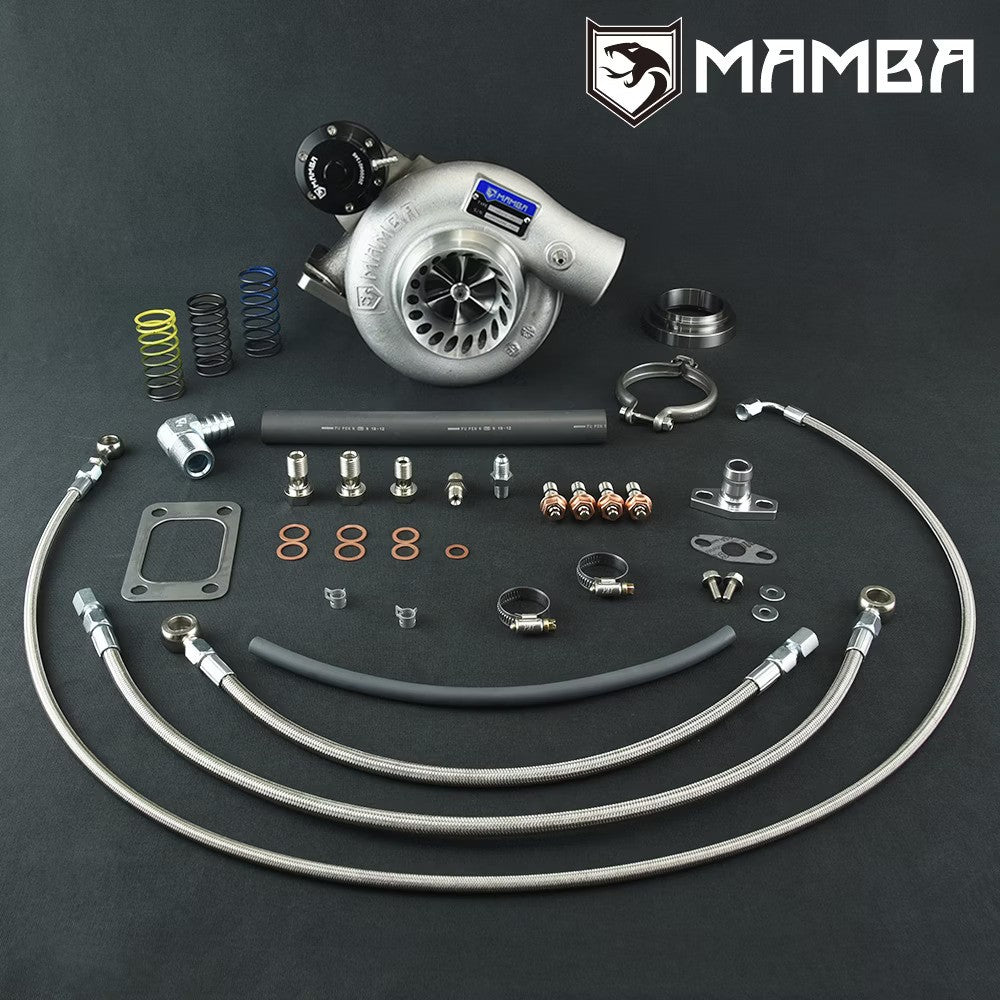

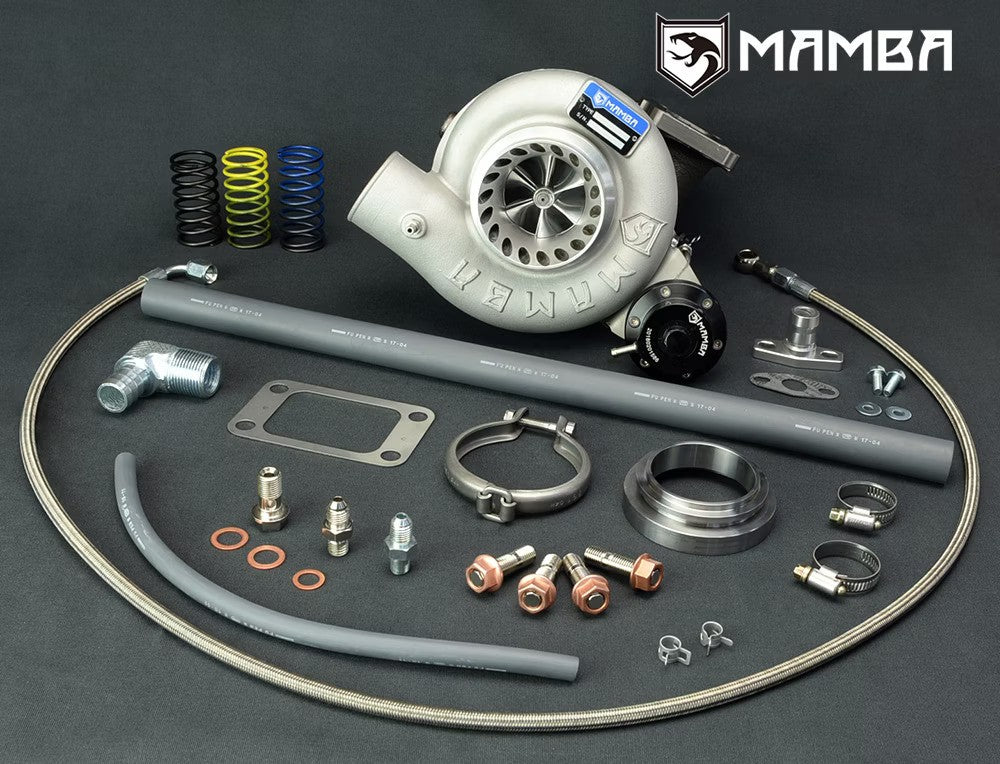

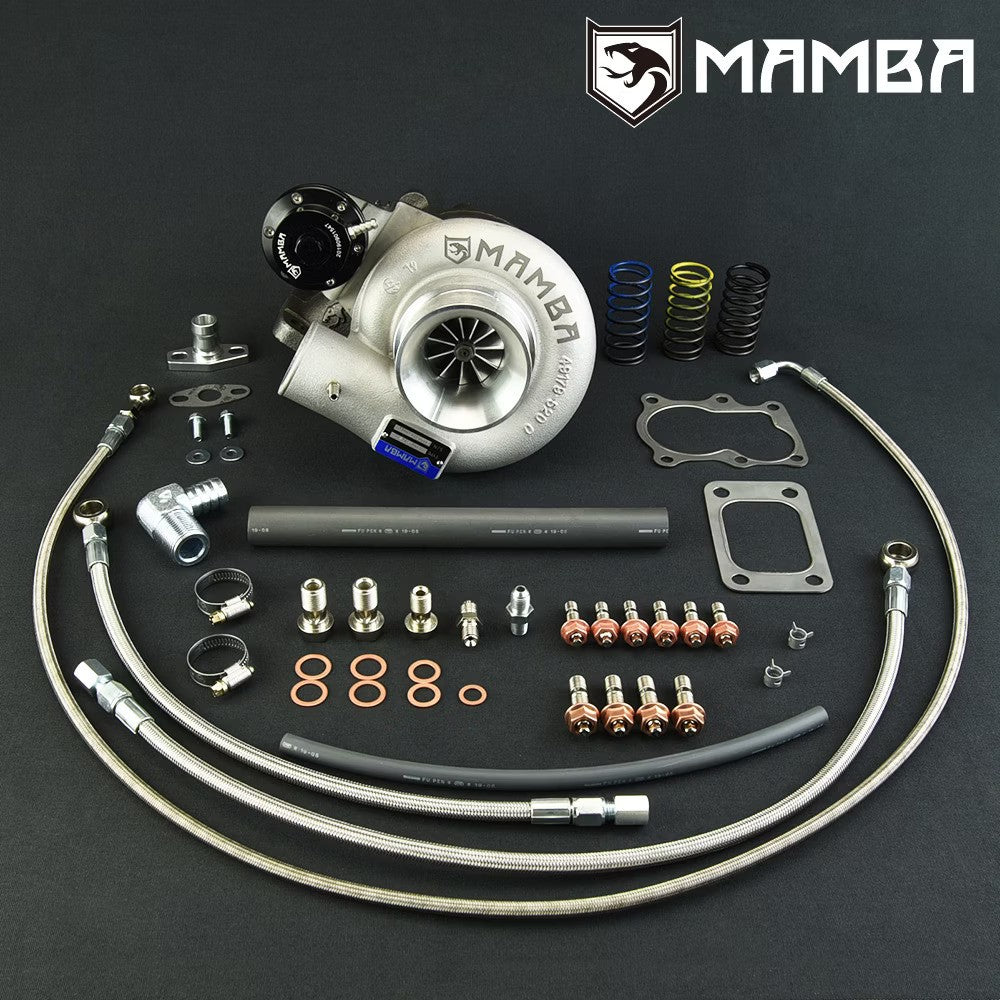

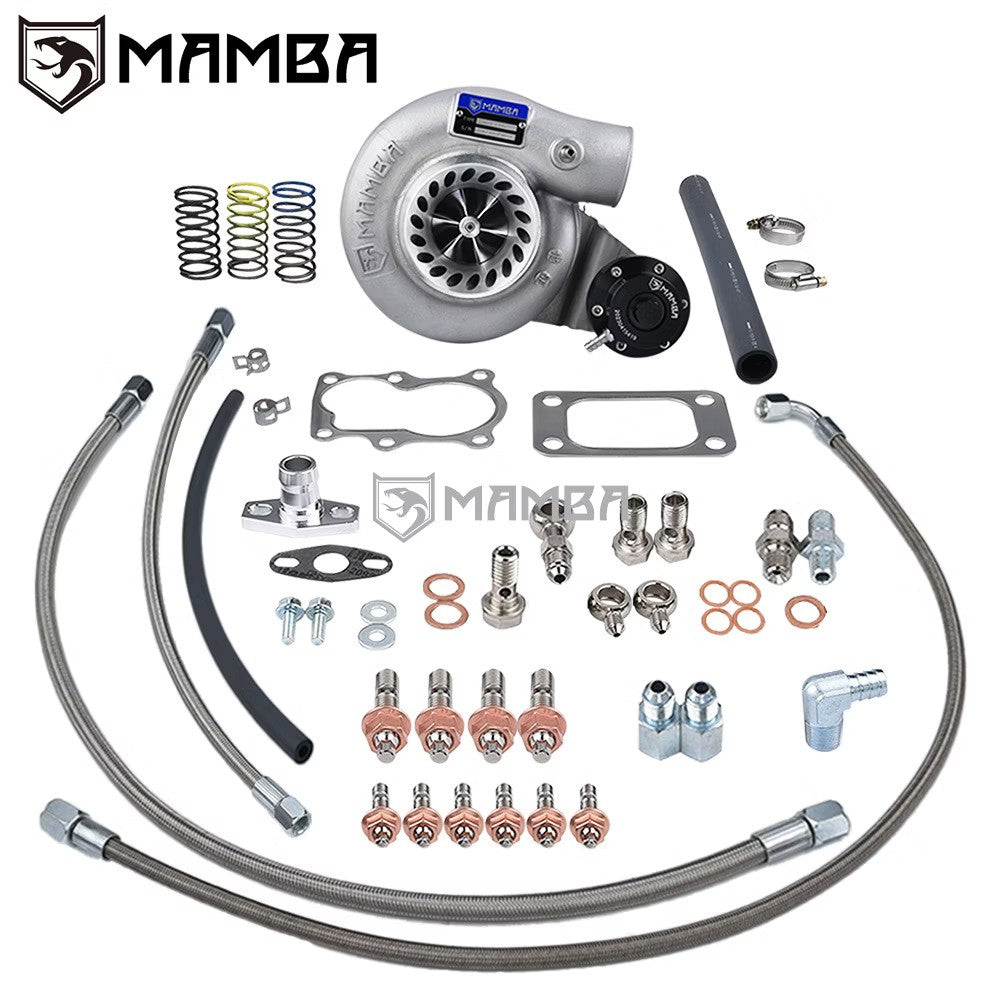

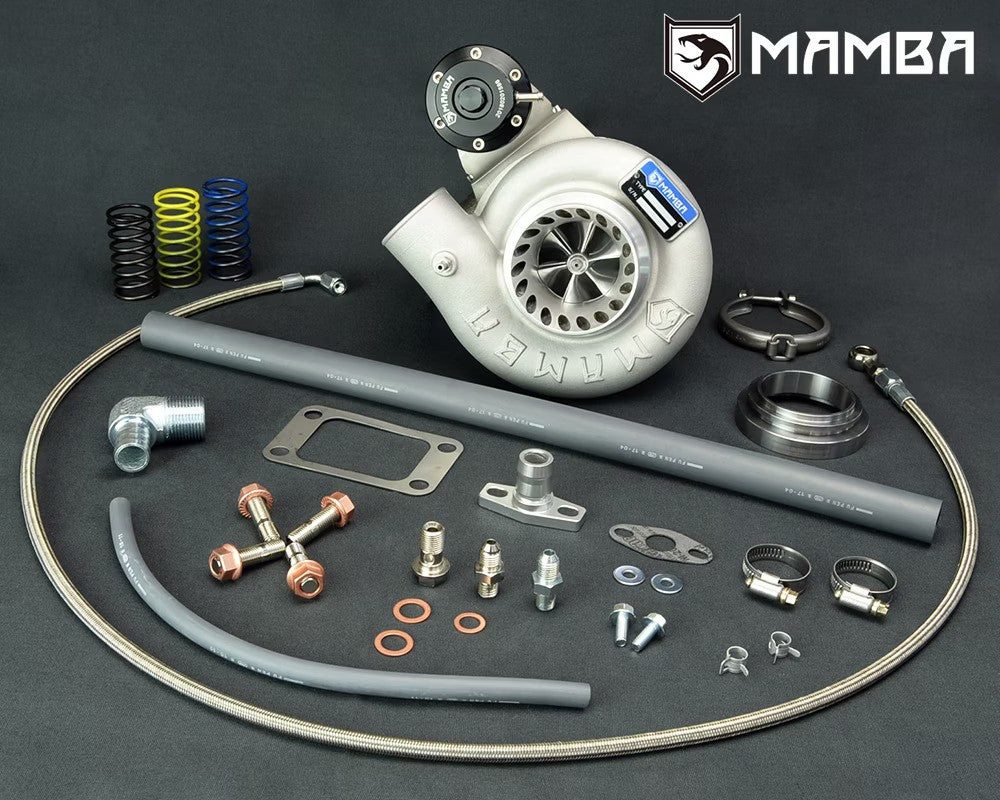

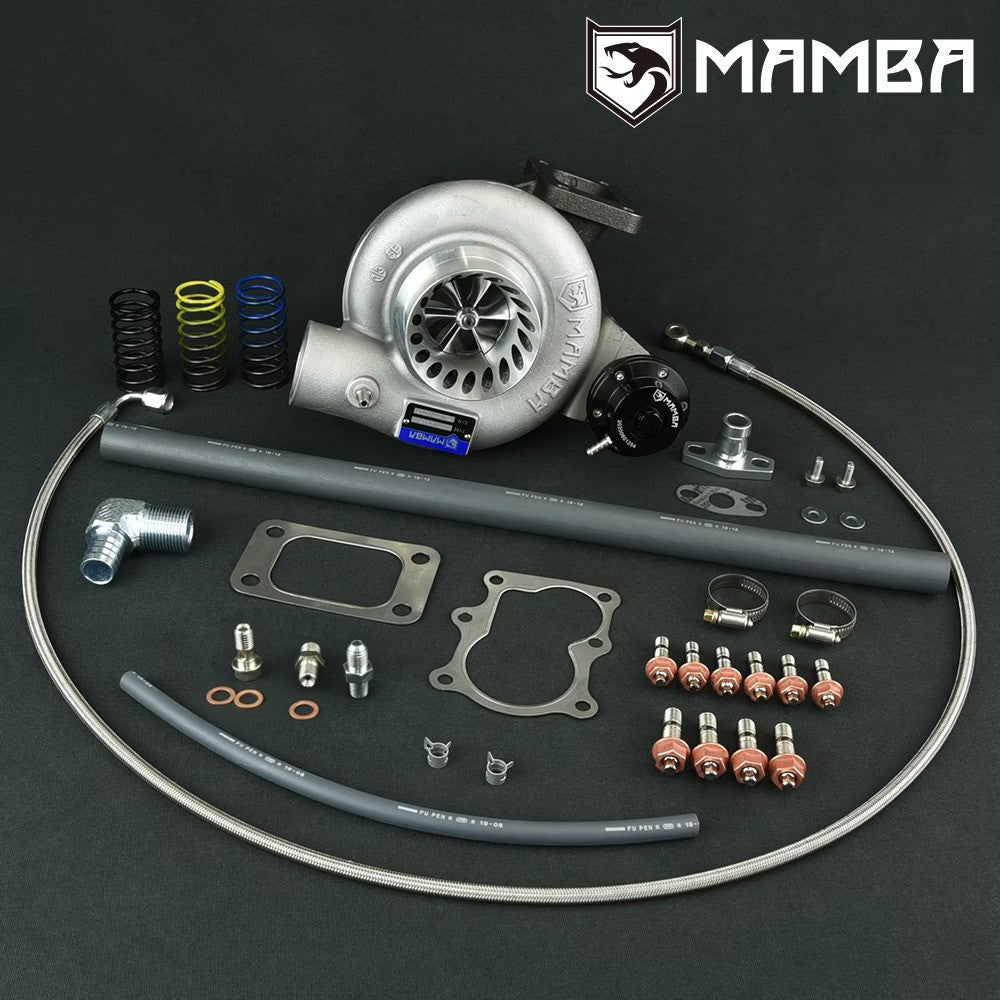

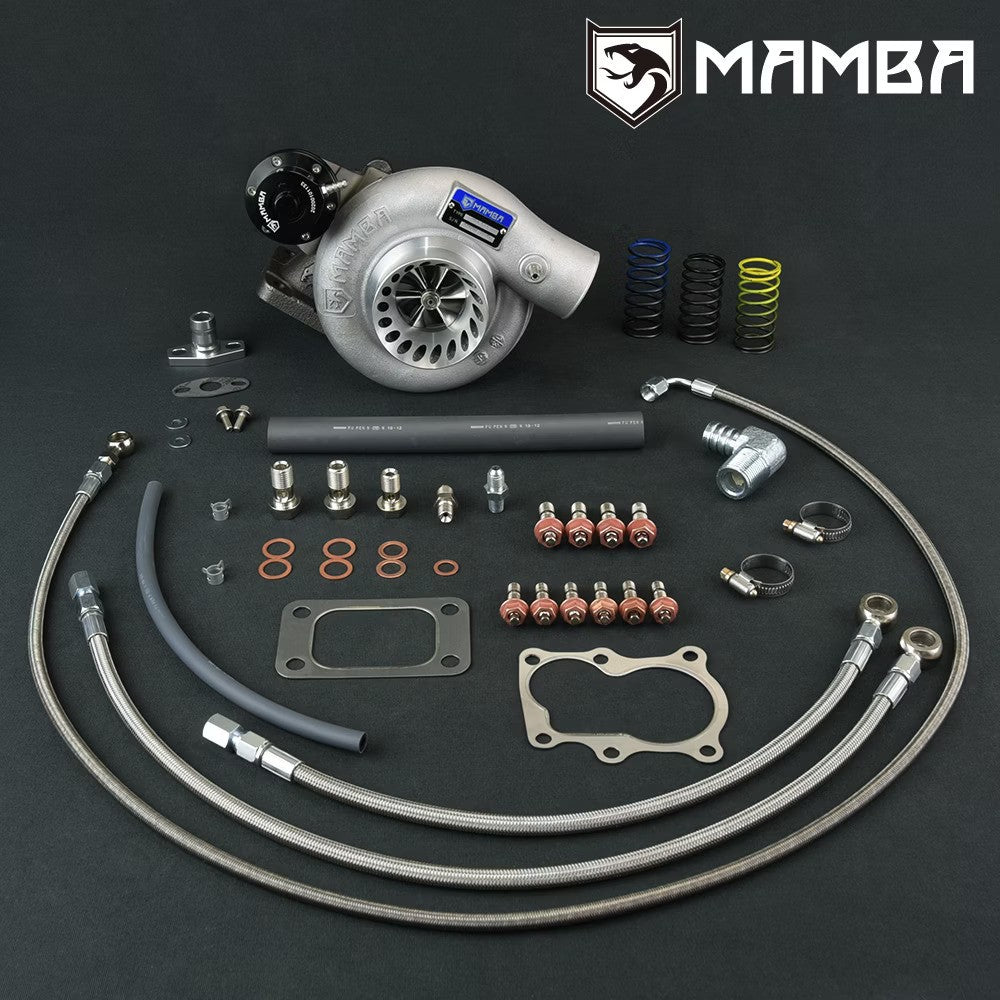

All Turbos Include:
- Performance Journal Bearing
- Fitting Kit
- 0.8bar spring pre-installed.
- Additional 1.2bar and 1.5bar springs included
