All Mamba turbo chargers are balanced by award winning SCHENCK balancing machinery.
- Nissan Patrol GU TD42 Diesel
12-6 TD05H-16G 6cm Bolt-On Hsg
-
Turbine housing can bolt up to factory exhaust manifold and dump pipe. (Low Mount)
Intake pipe needs to be modified to fit the 3” Inlet. - Comp. Wheel: 48.3 / 68mm (6+6 Blade Billet Wheel 16G with Extended Tip)
- Turbine Wheel: 49.2 / 56.4 mm (12 Blade TD05H Inconel)
- Compressor Housing: 3” Inlet / 2” Outlet (76.2mm Inlet / 51mm Outlet)
- Turbine Housing: 6cm^2
- T3 Flange
-
Internal Gate
- Oil and Water-cooled
TD05H-18G 6cm Bolt-On Hsg
- Turbine housing can bolt up to factory exhaust manifold and dump pipe. (Low Mount)
Intake pipe needs to be modified to fit the 3” Inlet. - Comp. Wheel: 50.39 / 68mm (6+6 Blade Billet Wheel 18G with Extended Tip)
- Turbine Wheel: 49.2 / 56.4 mm (12 Blade TD05H Inconel)
- Compressor Housing: 3” Inlet / 2” Outlet (76.2mm Inlet / 51mm Outlet)
- Turbine Housing: 6cm^2
- T3 Flange
-
Internal Gate
- Oil and Water-cooled
9-6 TD05H-18G 6cm Bolt-on Hsg
- Turbine housing can bolt up to factory exhaust manifold and dump pipe. (Low Mount)
Intake pipe needs to be modified to fit the 3” Inlet. - Comp. Wheel: 50.39 / 68mm (6+6 Blade Billet Wheel 18G with Extended Tip)
- Turbine Wheel: 49.2 / 56.4 mm (9 blade TD05H Inconel)
- Compressor Housing: 3” Inlet / 2” Outlet (76.2mm Inlet / 51mm Outlet)
- Turbine Housing: 6cm^2
- Standard T3 Flange
-
Internal Gate Type
- Oil and Water-cooled
GTX TD05H-16G 6cm Bolt-On Hsg
- Turbine housing can bolt up to factory exhaust manifold and dump pipe. (Low Mount)
Intake pipe needs to be modified to fit the 3” Inlet. - Comp. Wheel: 48.5 / 68mm (GTX 11 Blade Billet Wheel 16G with Extended Tip)
- Turbine Wheel: 49.2 / 56.4 mm (9 blade TD05H Inconel)
- Turbine Housing: 6cm^2
- T3 Flange
-
Internal Gate
- Oil and Water-cooled
GTX TD05H-18G 6cm Bolt-On Hsg
- Turbine housing can bolt up to factory exhaust manifold and dump pipe. (Low Mount)
Intake pipe needs to be modified to fit the 3” Inlet. - Comp. Wheel: 50.5 mm / 68 mm (GTX 11 Blade Billet Wheel 18G with Extended Tip)
- Turbine Wheel: 49.2 / 56.4 mm (9 blade TD05H Inconel)
- Compressor Housing : 3” Inlet / 2” Outlet (76.2mm Inlet / 51mm Outlet)
- Turbine Housing: 6cm^2
- T3 Flange
-
Internal Gate
- Oil and Water-cooled
GTX TD05H-20G 6cm Bolt-On Hsg
- Turbine housing can bolt up to factory exhaust manifold and dump pipe. (Low Mount)
Intake pipe needs to be modified to fit the 3” Inlet. - Comp. Wheel: 52.5 mm / 68 mm (GTX 11 Blade Billet Wheel 20G with Extended Tip)
- Turbine Wheel: 49.2 / 56.4 mm (9 blade TD05H Inconel)
- Turbine Housing: 6cm^2
- T3 Flange
- Internal Gate
- Oil and Water-cooled

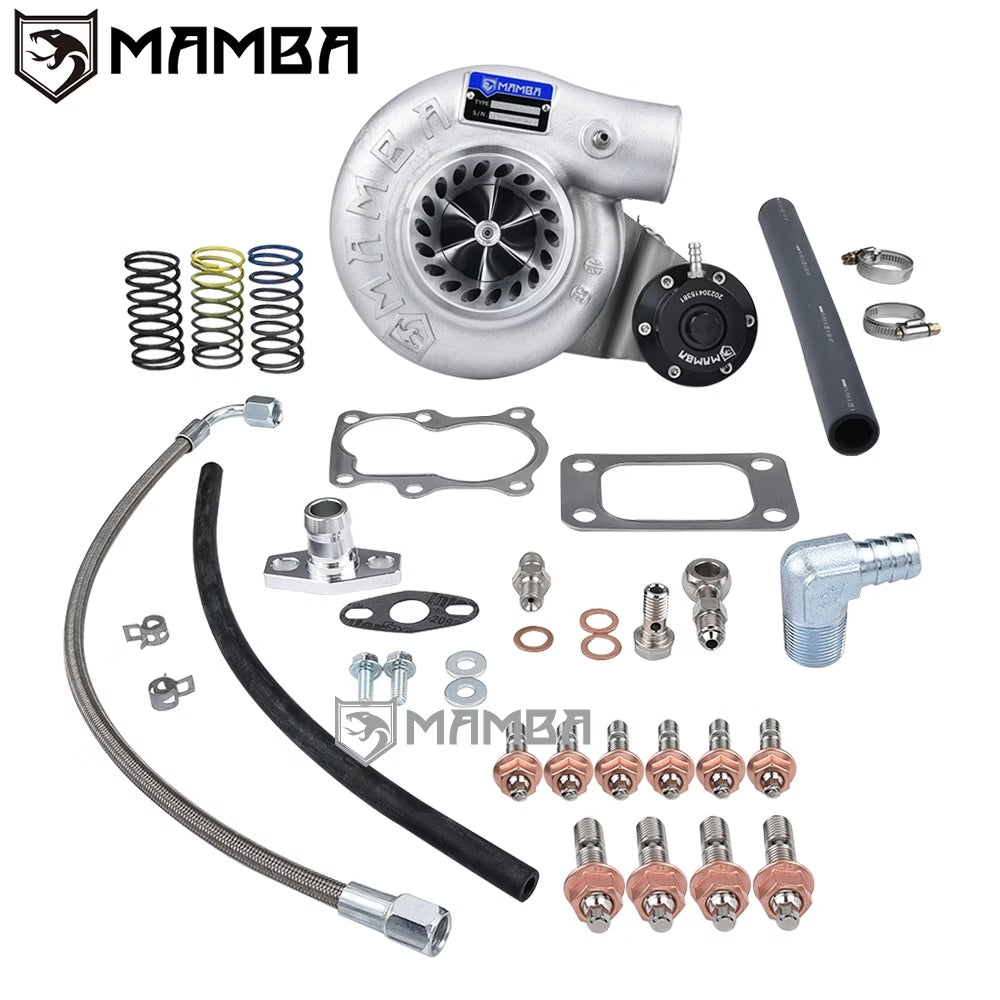

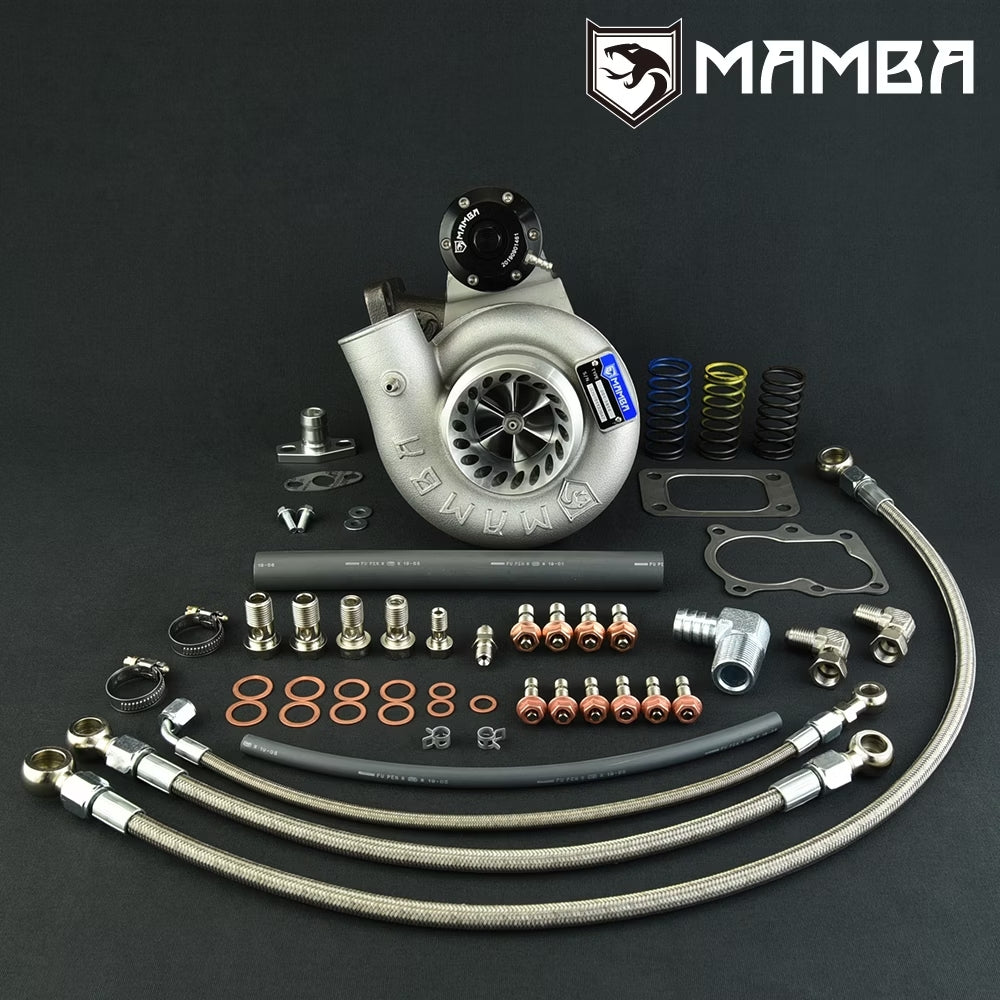

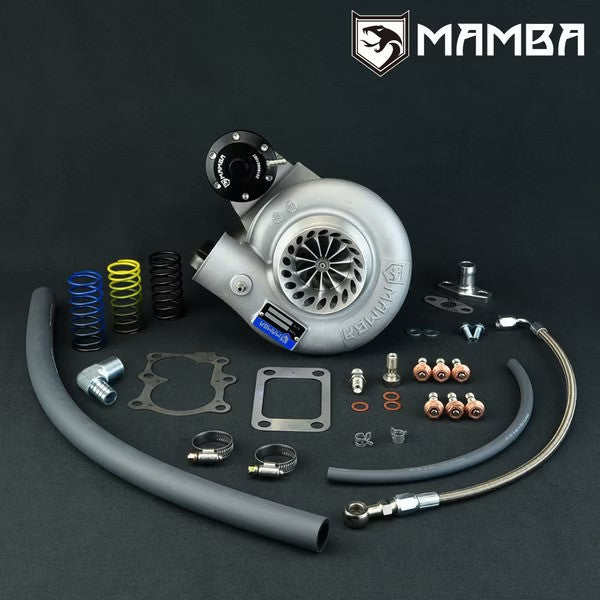

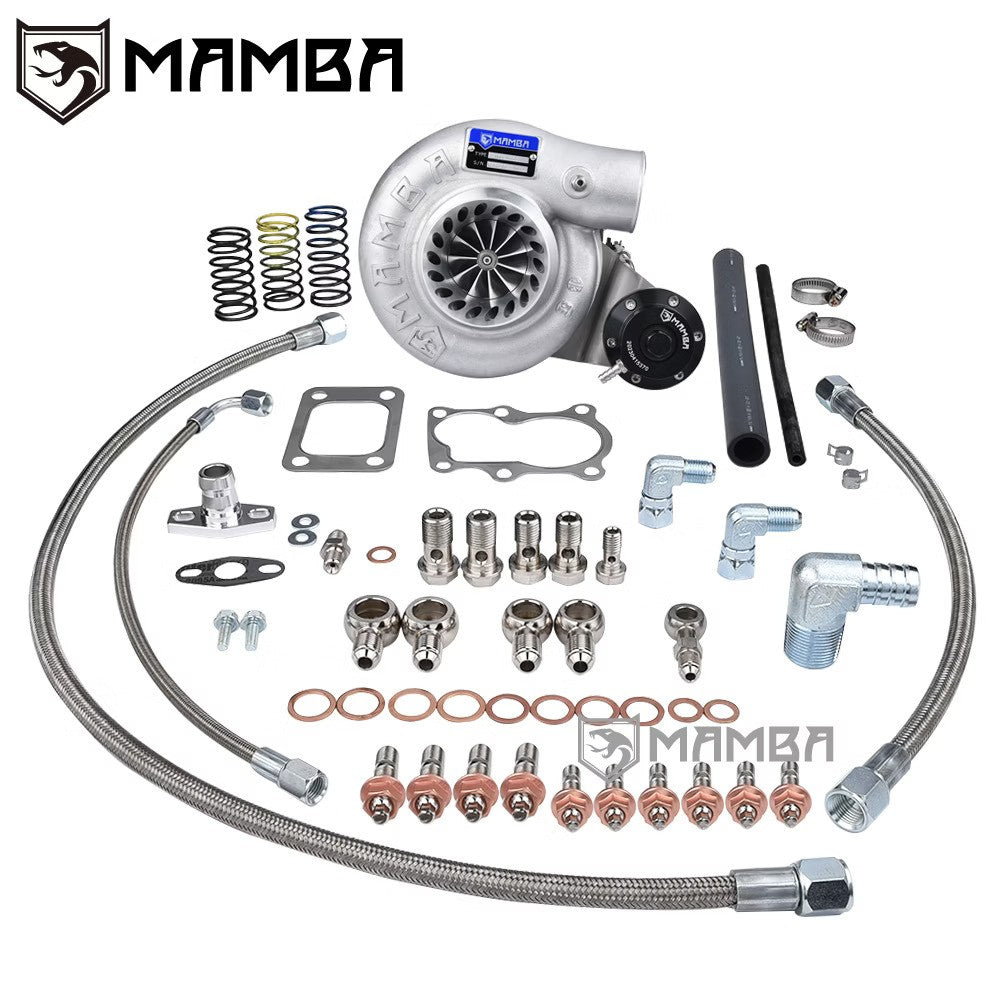

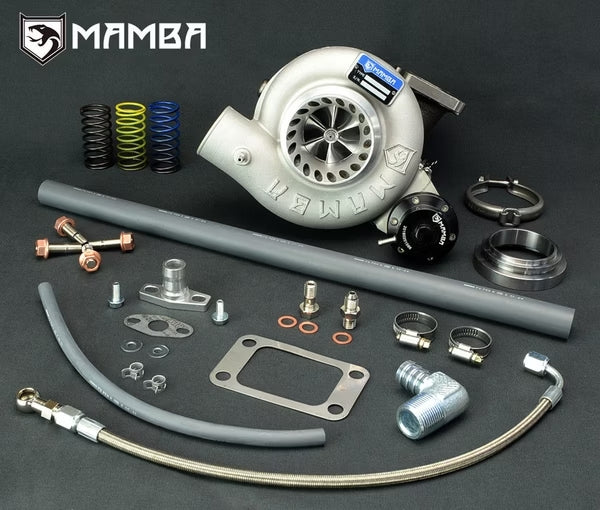

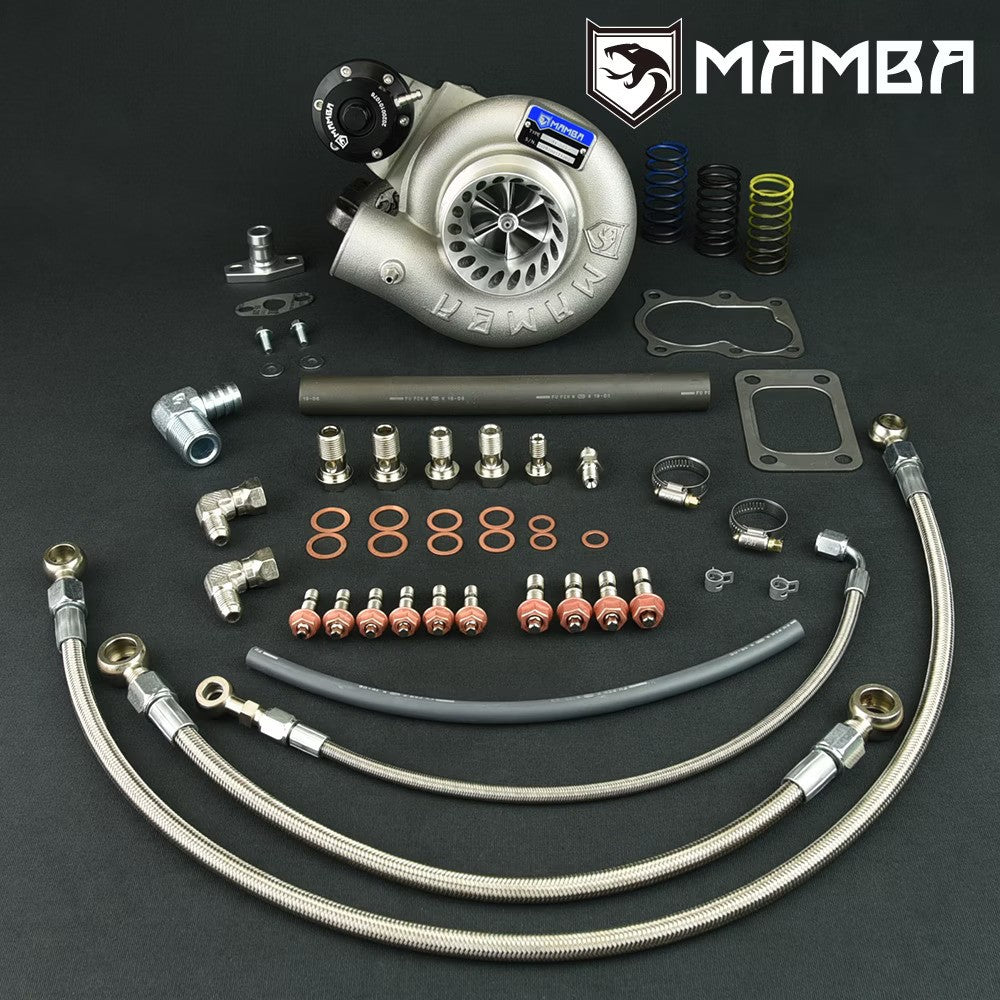

All Turbos Include:
- Performance Journal Bearing
- Fitting Kit
- 0.8bar spring pre-installed.
- Additional 1.2bar and 1.5bar springs included
